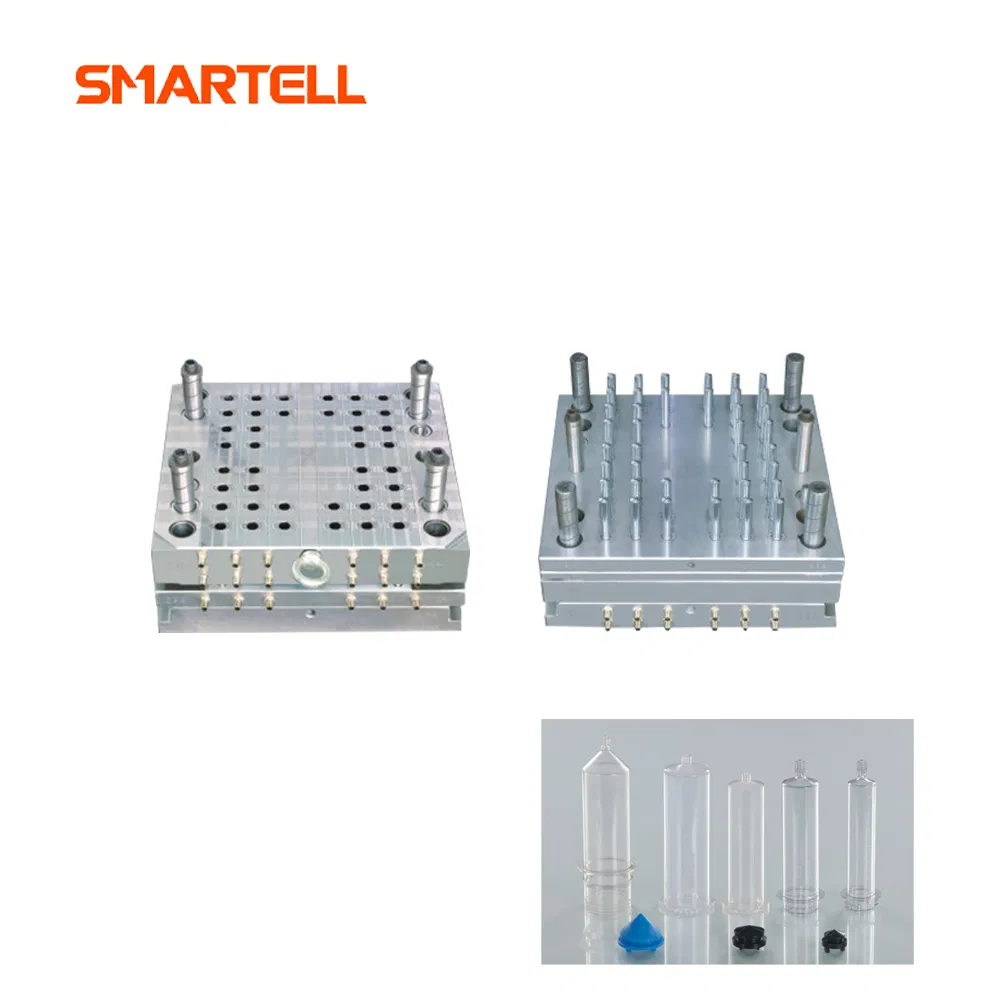

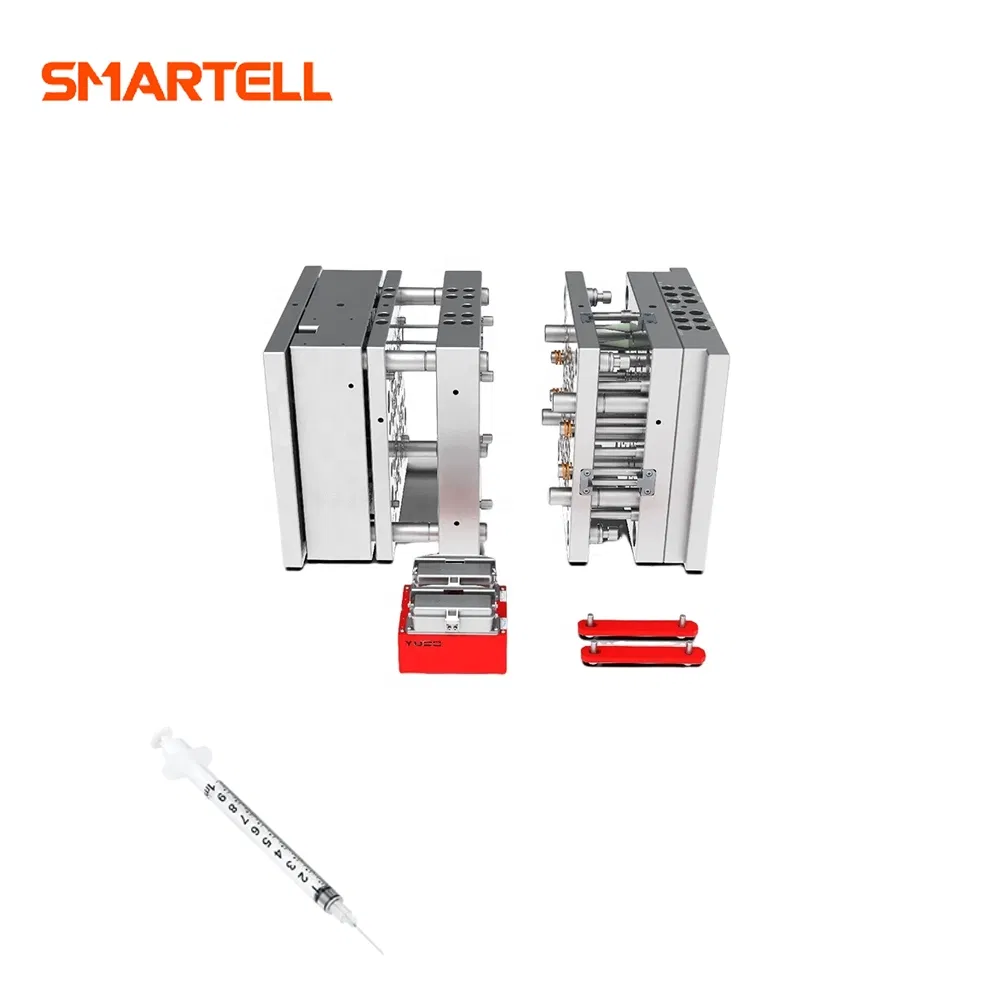

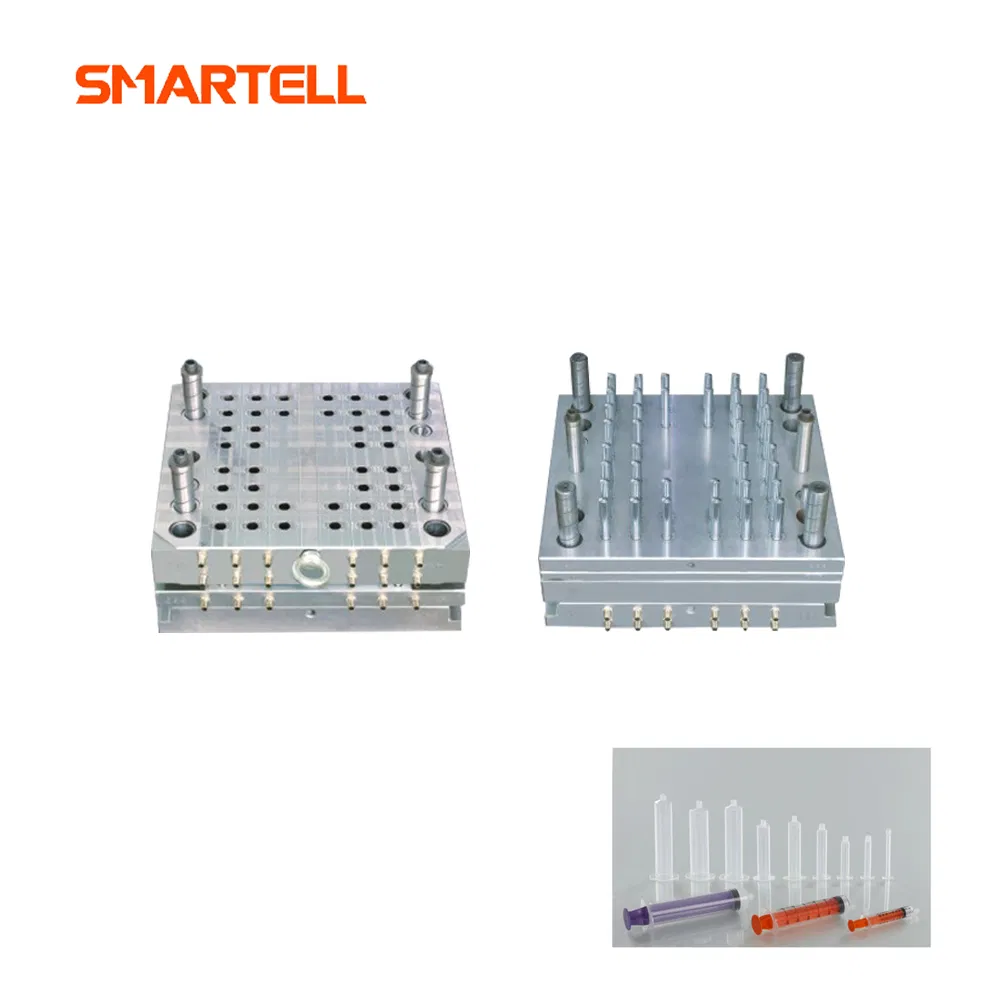

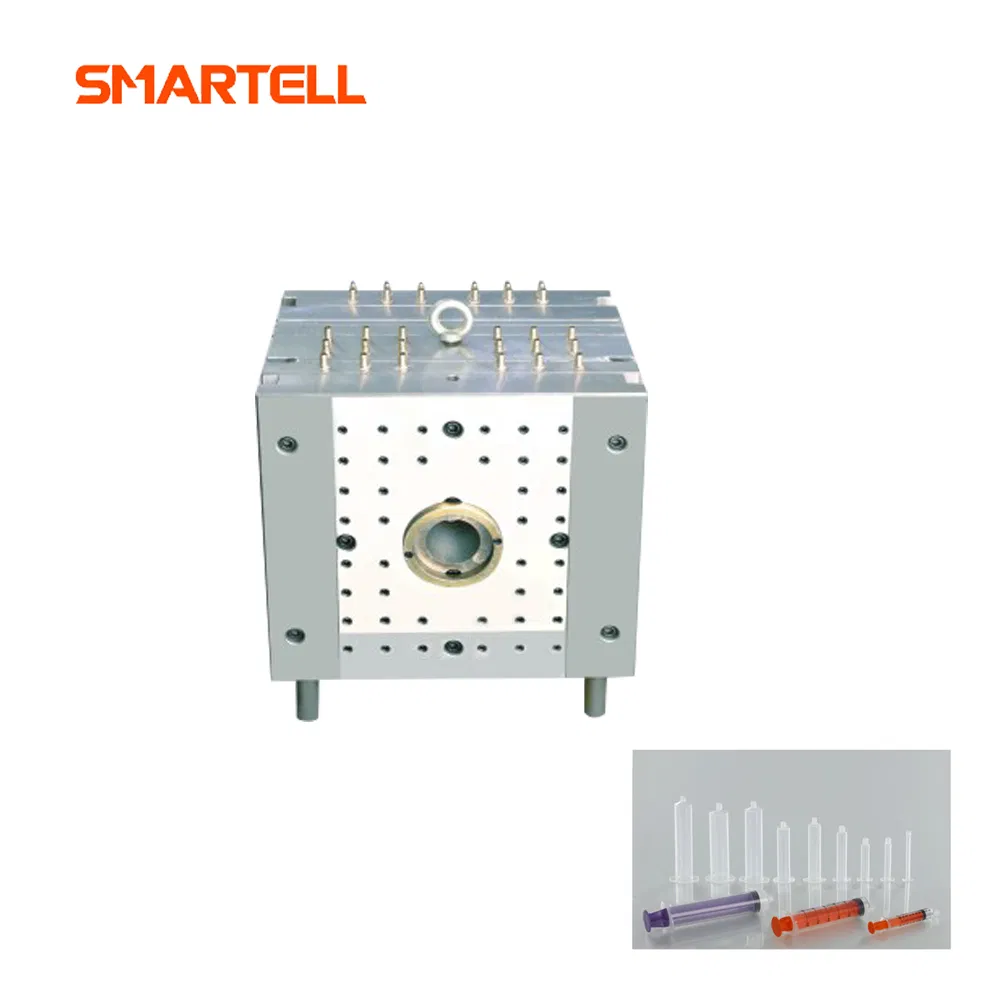

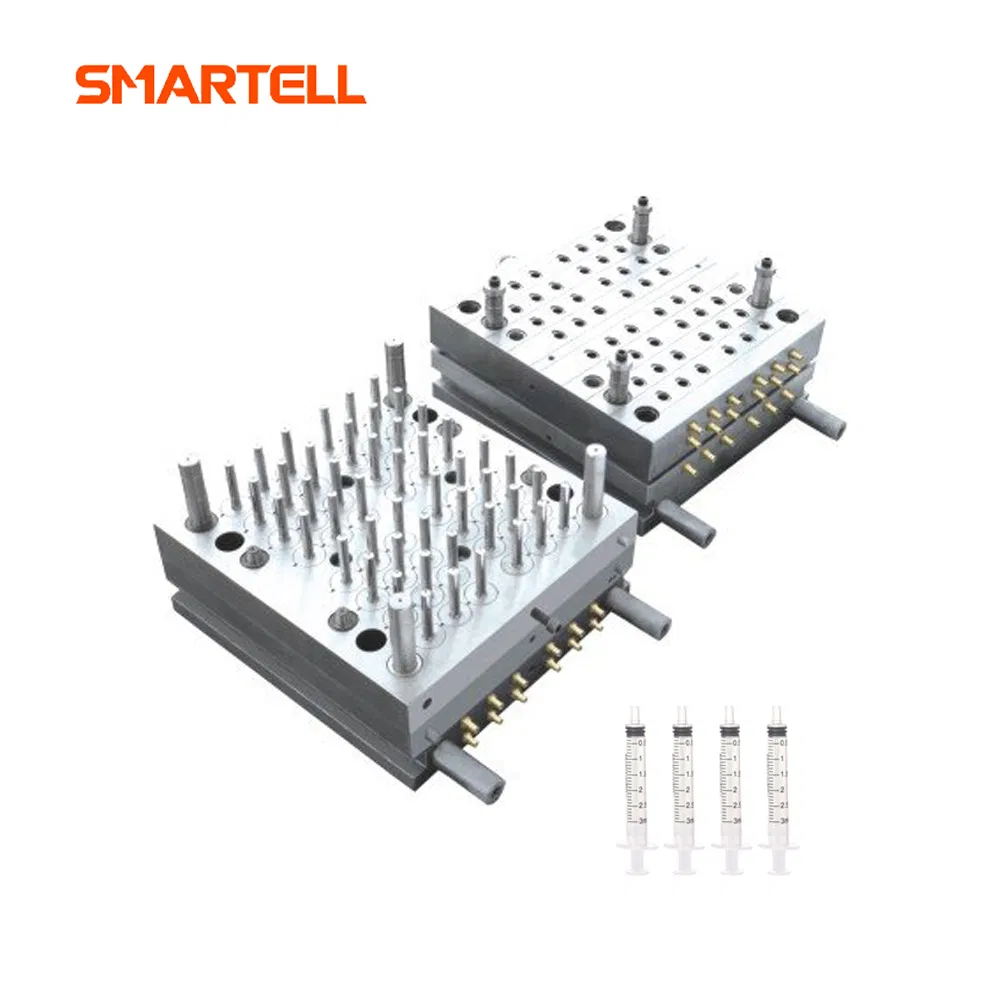

High Output Syringe Barrel Injection Mold for Medical Consumables Factory

1 / 5

High Output Syringe Barrel Injection Mold for Medical Consumables Factory

Warranty:	1 Year
Shaping Mode:	Injection Mould
Surface Finish Process:	Polishing

Send Inquiry

Product Description

ℹ️

Basic Information

Model NO.:SMT

Mould Cavity:Multi Cavity

Plastic Material:PP, PVC, PE etc.

Process Type:Compound Die

Application:Household Appliances, Electronic, Medical

Runner:Cold Runner

Design Software:AutoCAD

Certification:CE, ISO

Mould Material:P20, S50c, 4Cr13, S136, etc.

Mould Life:3.5 Million Shots

Specification:0.5ml-60ml Syringe

Origin:China

📦

Packaging & Delivery

Package Size:100.00cm * 100.00cm * 100.00cm

Gross Weight:1500.000kg

Transport Package:Wooden Case

🛠️

Product Description

Mold Specifications

Features include multiple cavities and semi-hot or colder runners.

Main Applications

Syringe Parts: barrel, plunger, gasket, needle hub, needle cap
Infusion Sets: drip chamber, spike, spike cap, roller, air plug, connector, filter ring

Key Advantages

High Production Efficiency: Optimized mold design and short cycle time increase output.

Consistent Quality: Precision machining ensures each product meets ISO medical standards.

Cost-Effective: Long mold lifespan (3.5M shots) reduces maintenance costs.

Customization: Tailored for specific 2-part or 3-part syringes and infusion sets.

📊

Technical Specification

Suitable Syringe Type	Regular Syringe and others	Suitable Syringe Size	1ml-60ml
Production Capacity	10000-15000pcs/hour	Power Supply	220V/380V/50HZ/60HZ
Operation Language	English / Customized	Field Installation	Available

Workflow Process

Step	Phase	Description
1	Enquiry	Customers send clear pictures, drawings, or 3D data.
2	Quote	Detailed quotation provided based on specifications.
3	Negotiation	Discussion on material, delivery time, and payment.
4	Design	Mold structure drawing and auditing.
5	Production	Part design approval followed by precision manufacturing.
6	Test Run	Mold testing and sample verification until requirements are met.

🖼️

Production Equipment

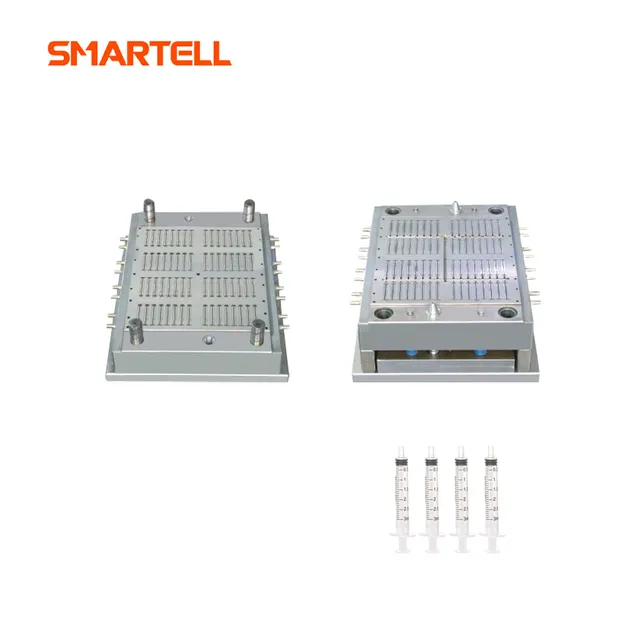

Medical Mold
P20/S136 Material

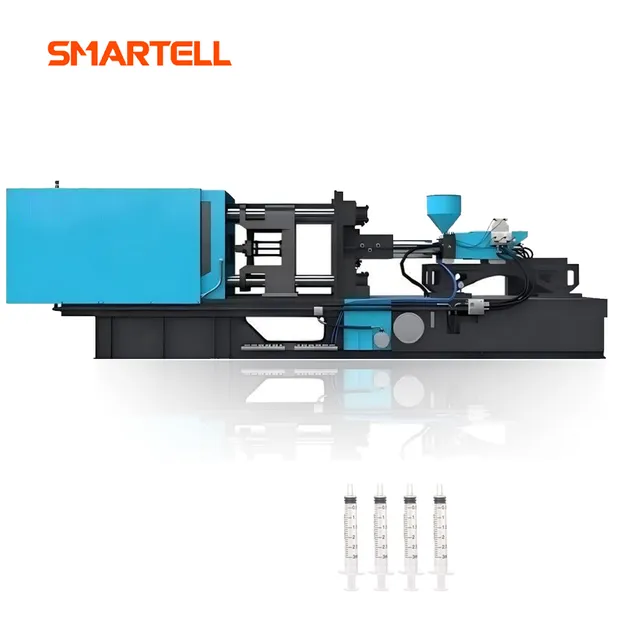

Injection Machine
100-500 Ton

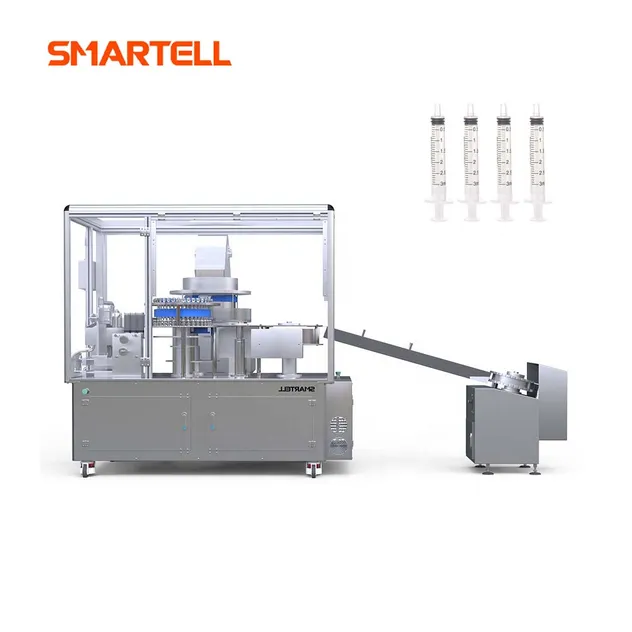

Printing Machine
Single Color / Spraying

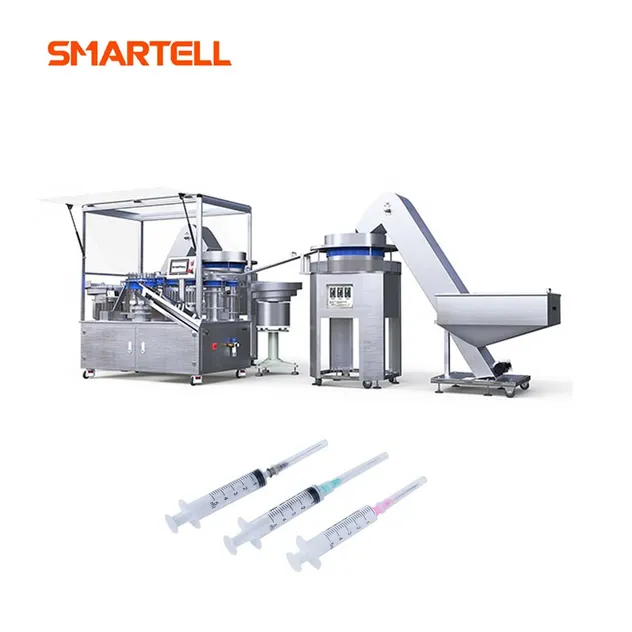

Assembly Machine
PLC Control System

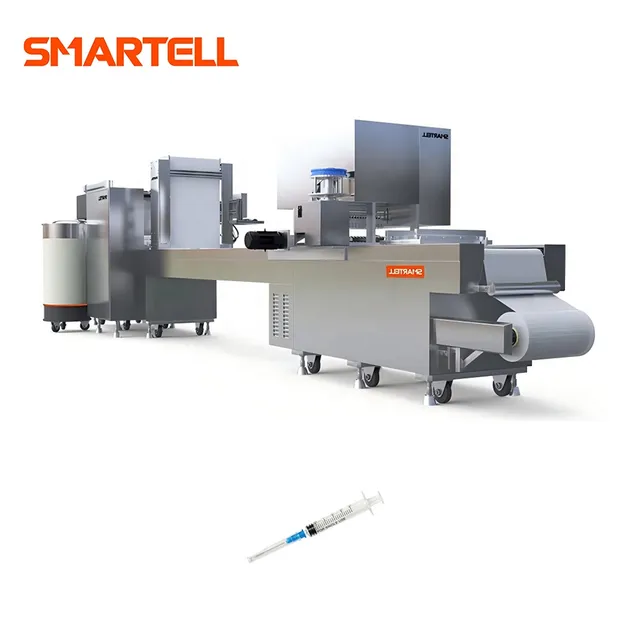

Packing Machine
Blister/Polybag Packing

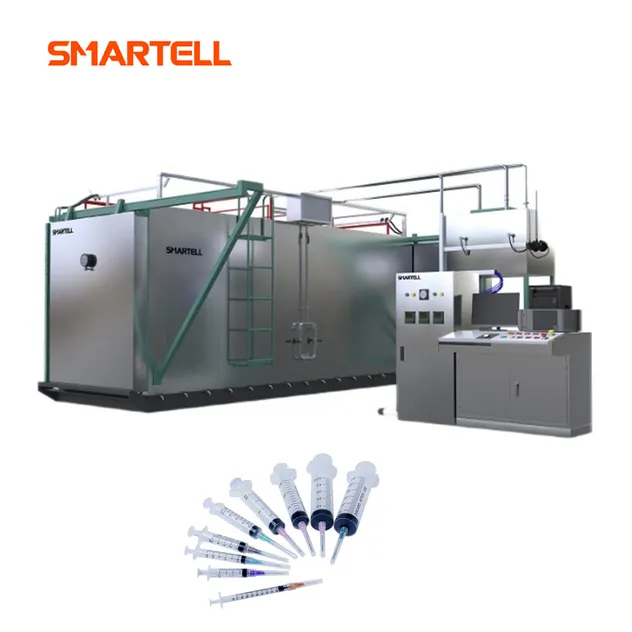

Sterilization Machine
1cbm-25cbm Options

❓

Frequently Asked Questions

Q1: What materials are typically used for the medical molds? A: We primarily use high-quality steel such as P20, S50c, 4Cr13, and S136 to ensure durability and precision.

Q2: What is the estimated production capacity of your machinery? A: Our assembly and packing systems can achieve a production rate of 10,000 to 15,000 pieces per hour.

Q3: Are the molds suitable for different sizes of syringes? A: Yes, our molds and machines are designed for common medical syringe sizes ranging from 0.5ml to 60ml.

Q4: Do you offer customization for specific medical consumables? A: Absolutely. Molds can be tailored for specific 2-part or 3-part syringes, and various infusion set components based on customer drawings.

Q5: What is the expected lifespan of a typical syringe barrel mold? A: With proper maintenance, our high-precision molds can achieve a service life of approximately 3.5 million shots.

Q6: What kind of after-sales support is available? A: We provide comprehensive online support, spare parts, and video technical assistance to ensure smooth operation.
