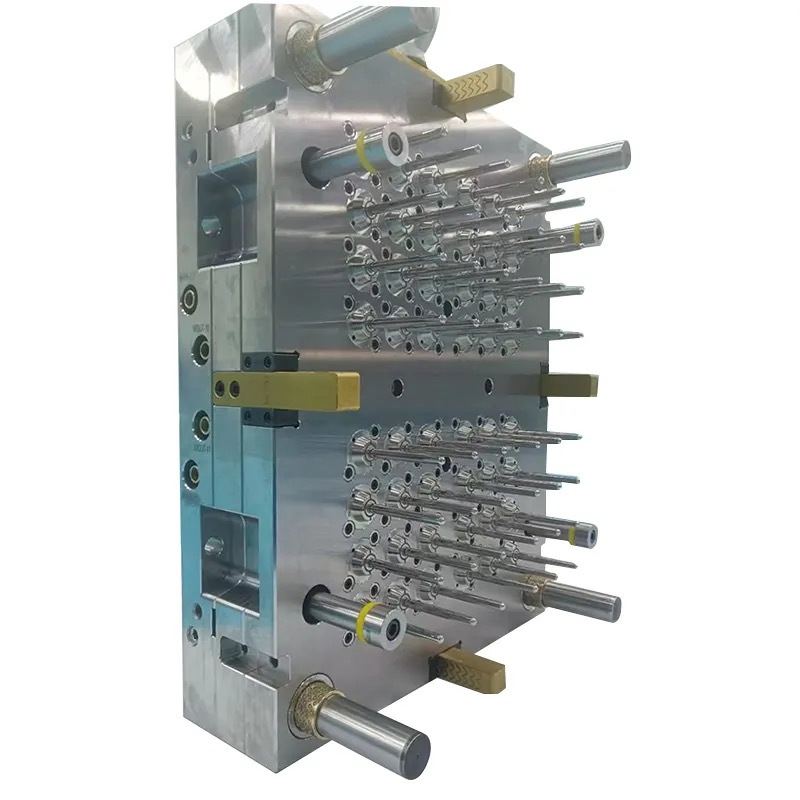

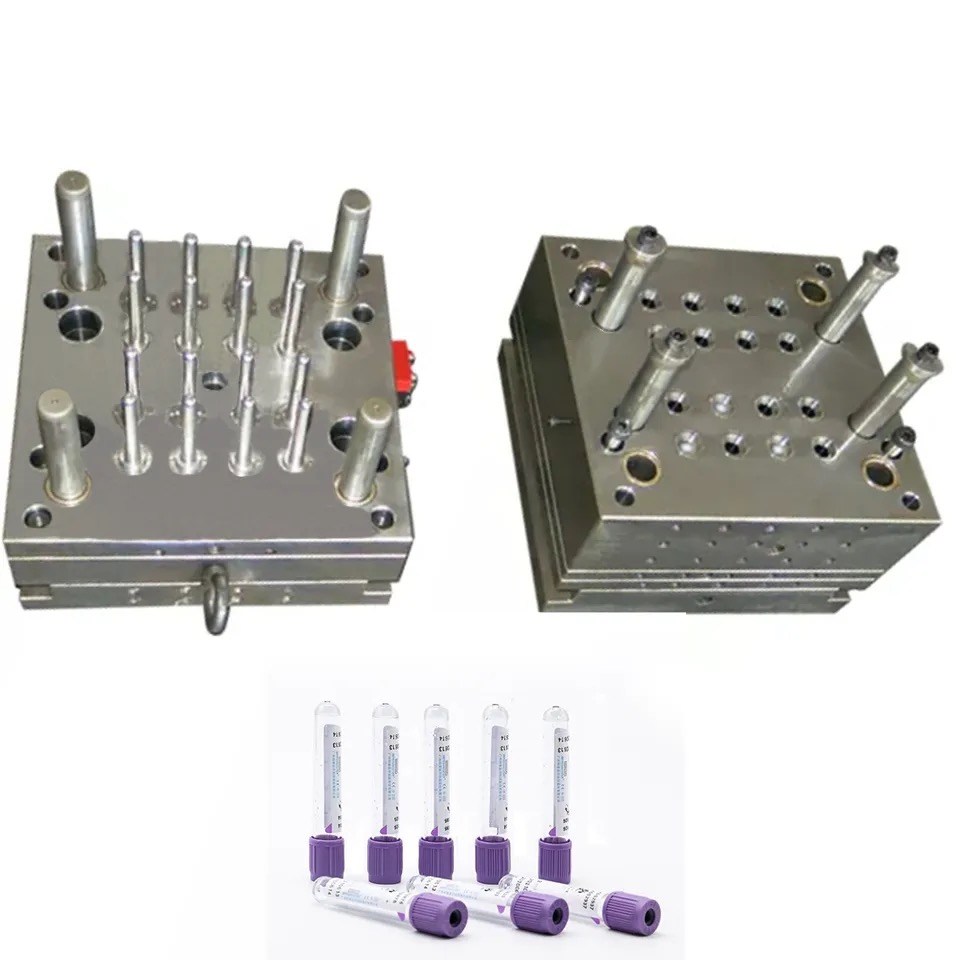

Multi Cavity Medical Automatic Vacuum Blood Collection Tube Consumable Medical Extrusion Blow Molding Machine Moulds
Multi Cavity Medical Automatic Vacuum Blood Collection Tube Consumable Medical Extrusion Blow Molding Machine Moulds
Multi Cavity Medical Automatic Vacuum Blood Collection Tube Consumable Medical Extrusion Blow Molding Machine Moulds
Multi Cavity Medical Automatic Vacuum Blood Collection Tube Consumable Medical Extrusion Blow Molding Machine Moulds
Multi Cavity Medical Automatic Vacuum Blood Collection Tube Consumable Medical Extrusion Blow Molding Machine Moulds
1 / 5
Multi Cavity Medical Automatic Vacuum Blood Collection Tube Consumable Medical Extrusion Blow Molding Machine Moulds
Multi Cavity Medical Automatic Vacuum Blood Collection Tube Consumable Medical Extrusion Blow Molding Machine Moulds
Multi Cavity Medical Automatic Vacuum Blood Collection Tube Consumable Medical Extrusion Blow Molding Machine Moulds
Multi Cavity Medical Automatic Vacuum Blood Collection Tube Consumable Medical Extrusion Blow Molding Machine Moulds
Multi Cavity Medical Automatic Vacuum Blood Collection Tube Consumable Medical Extrusion Blow Molding Machine Moulds

Multi Cavity Medical Automatic Vacuum Blood Collection Tube Consumable Medical Extrusion Blow Molding Machine Moulds

Customization: Available
Shaping Mode: Injection Mould
Surface Finish Process: Polishing
Send Inquiry

Product Description

Basic Information
Mould Cavity
Multi Cavity
Plastic Material
PP / Pet / PVC
Process Type
Compound Die
Application
Medical Appliances, Tube
Runner
Hot Runner
Design Software
UG
Standard
HASCO
Surface Treatment
Mirror Polished
HS Code
8480719090
Product Description

Multi Cavity Medical Automatic Vacuum Blood Collection Tube Consumable Medical Extrusion Blow Molding Machine Moulds

MOULD SPECIFICATIONS
ComponentDetails
Cavity1-72
Mould base materialP20, 45#, 4CR13, etc.
Core & Cavity materialS136, 718, P20, 2378, 2316, 4CR13, etc.
Runner SystemCold / Hot (Local Brand, HASCO, YUDO, HUSKY, etc.)
Life time3,000,000 shots
Quick T1 time25-40 days
PackageWooden Case

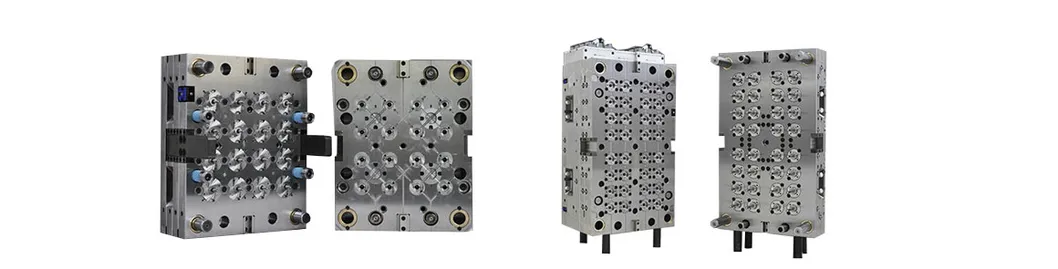

Medical Mould Banner
CORE ADVANTAGES
  • Cost Efficiency: Saving 10%-30% cost compared to competitors.
  • Direct factory competitive pricing.
  • Long Service Life: Up to 3,000,000 cycles.
  • Professional Design: 2D and 3D drawings provided.
  • Fast Turnaround: Quick T1 time in 25-40 days.
  • Expertise: Over 15 years of industry experience.

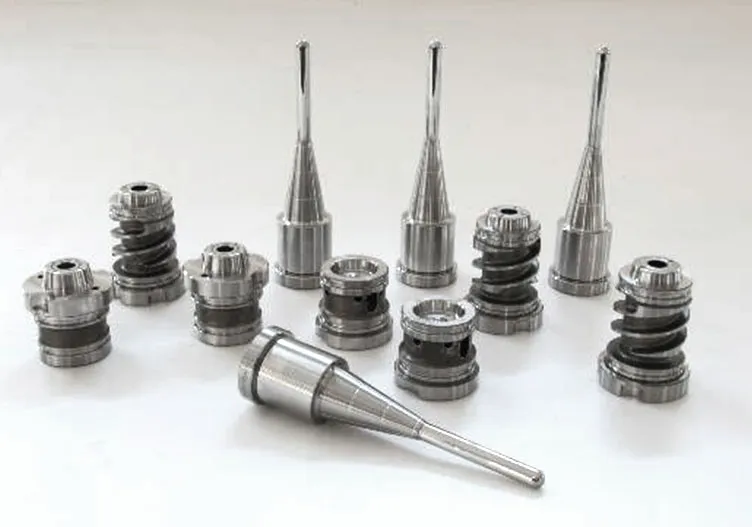

Test Tube Mould Details

PET Test Tube Mould Details

We specialize in producing: medical supplies molds, medical plastic molds, medical equipment molds, disposable blood transfusion appliances, medical drop bottle molds, laboratory supplies, and high-precision pharmaceutical packaging molds including needle holders and sheath gates.

TECHNICAL FEATURES
  • Mold ranges from 1 to 72 cavities.
  • Stainless steel mold plates for durability.
  • High-performance hot runner system for uniform melt flow.
  • Advanced European-standard cap mold structures.
  • Pneumatic nozzle pin drive for high-speed action.
  • Specialized cooling system to eliminate water marks.

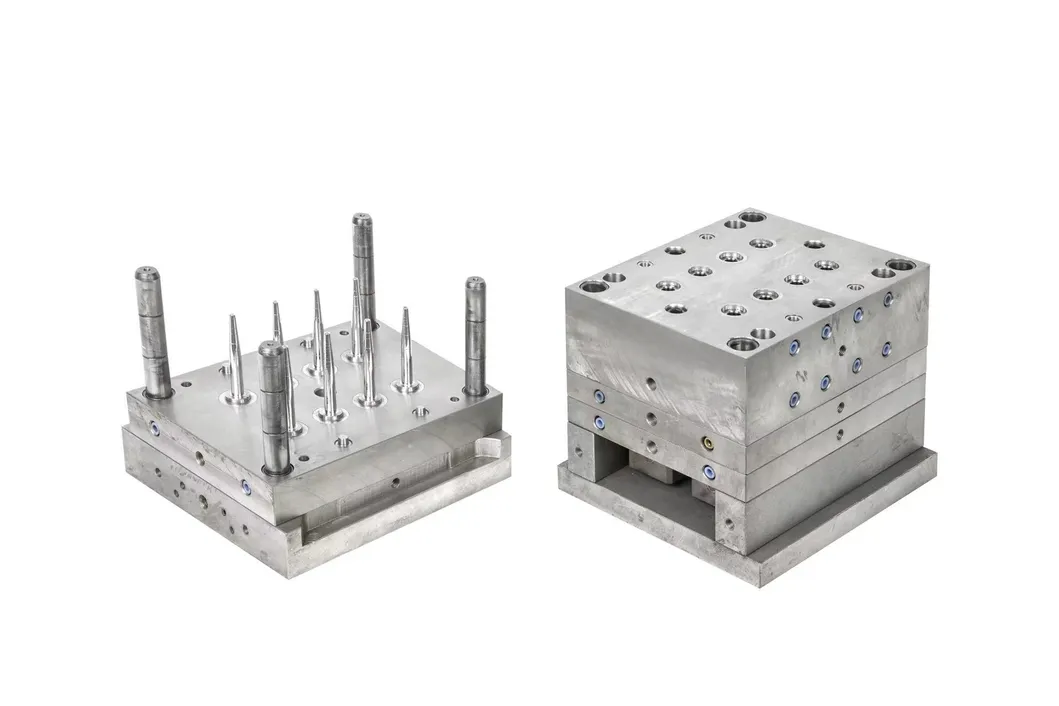

Mould Features

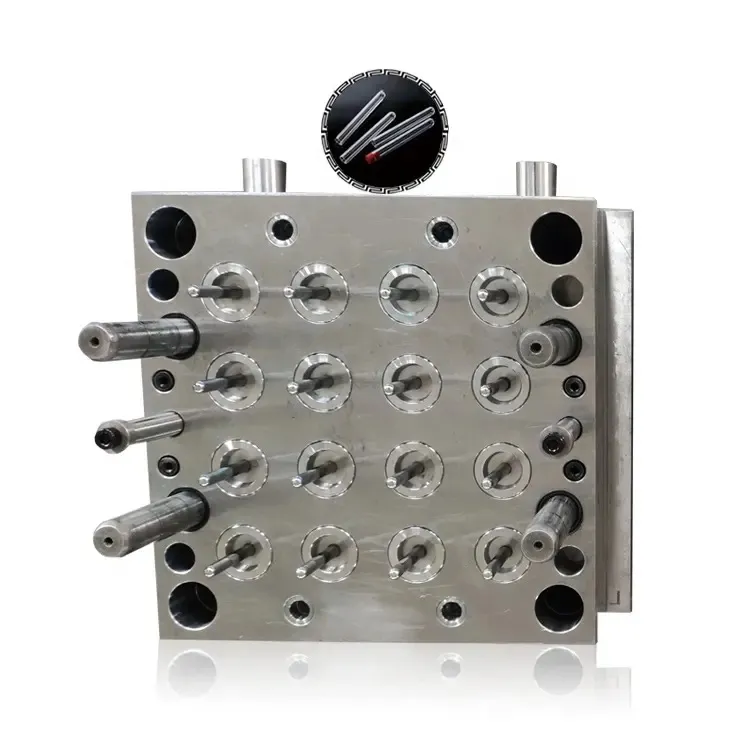

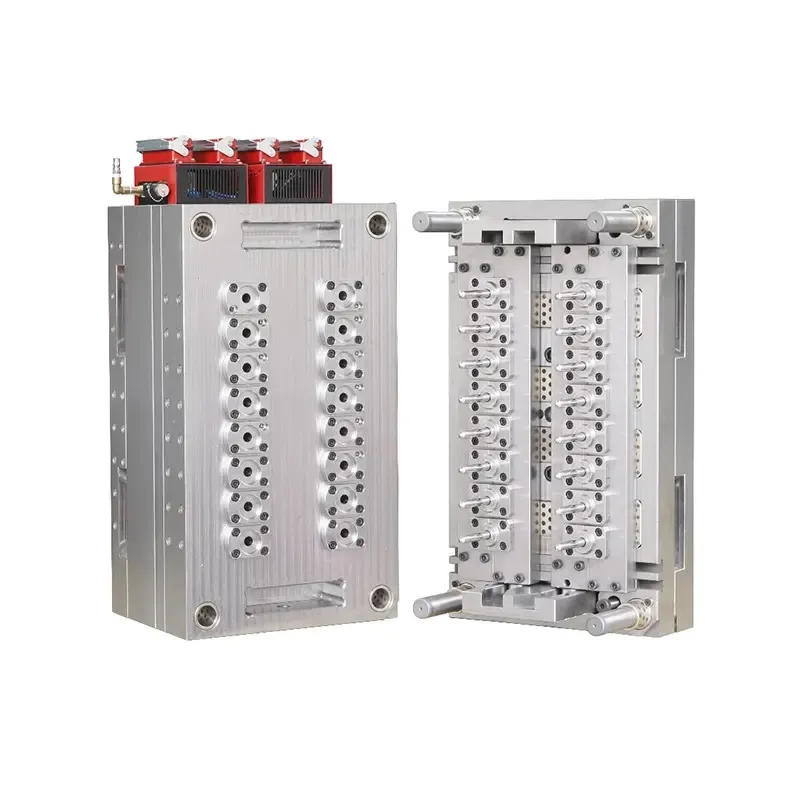

Mould Sample 1 Mould Sample 2
Process Analysis
Engineering Drawing
MOULD MANUFACTURE PROCESS
Grinding → CNC Milling → Drilling → Lathe → Boring → Electric Pulse → Polishing → Installation

Our needle valve gate system ensures each cavity is self-locked independently to maintain low rejection rates and uniform heating.

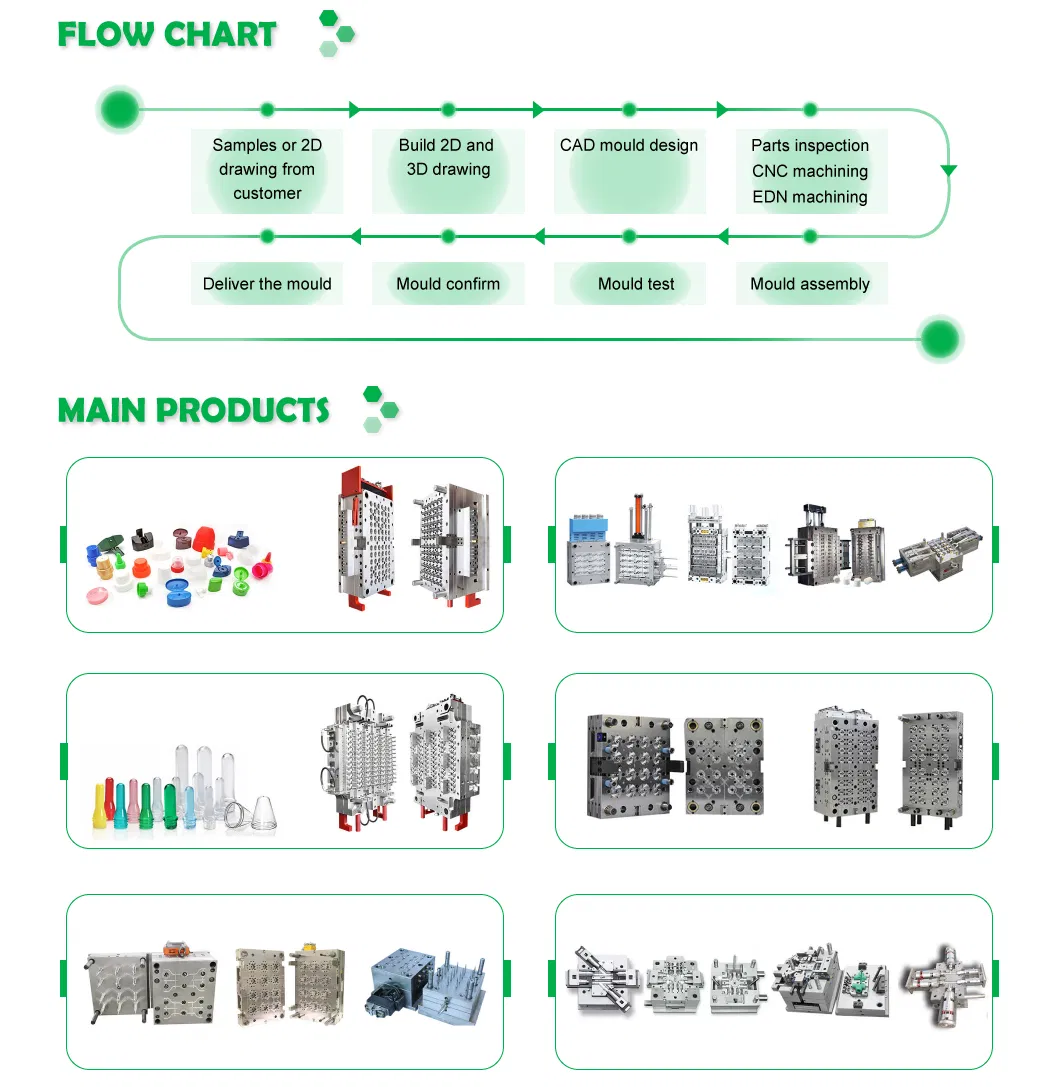

PRODUCTION FLOW CHART
1Sample or 2D/3D drawing from customer
2Build technical 2D/3D drawings
3CAD mould design
4Customer confirmation of drawings
5CNC/EDM machining & inspection
6Mould assembly
7Mould testing
8Sample confirmation
9Mould delivery

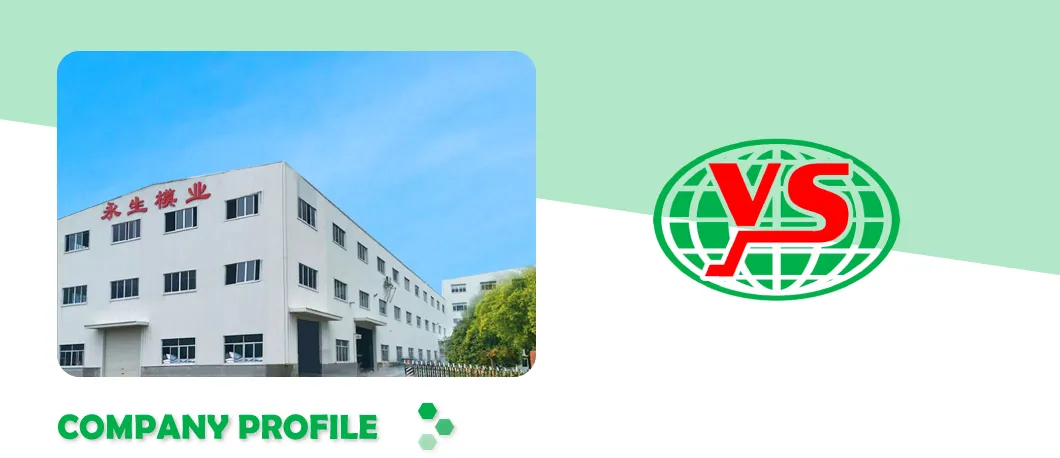

Factory View 1 Factory View 2

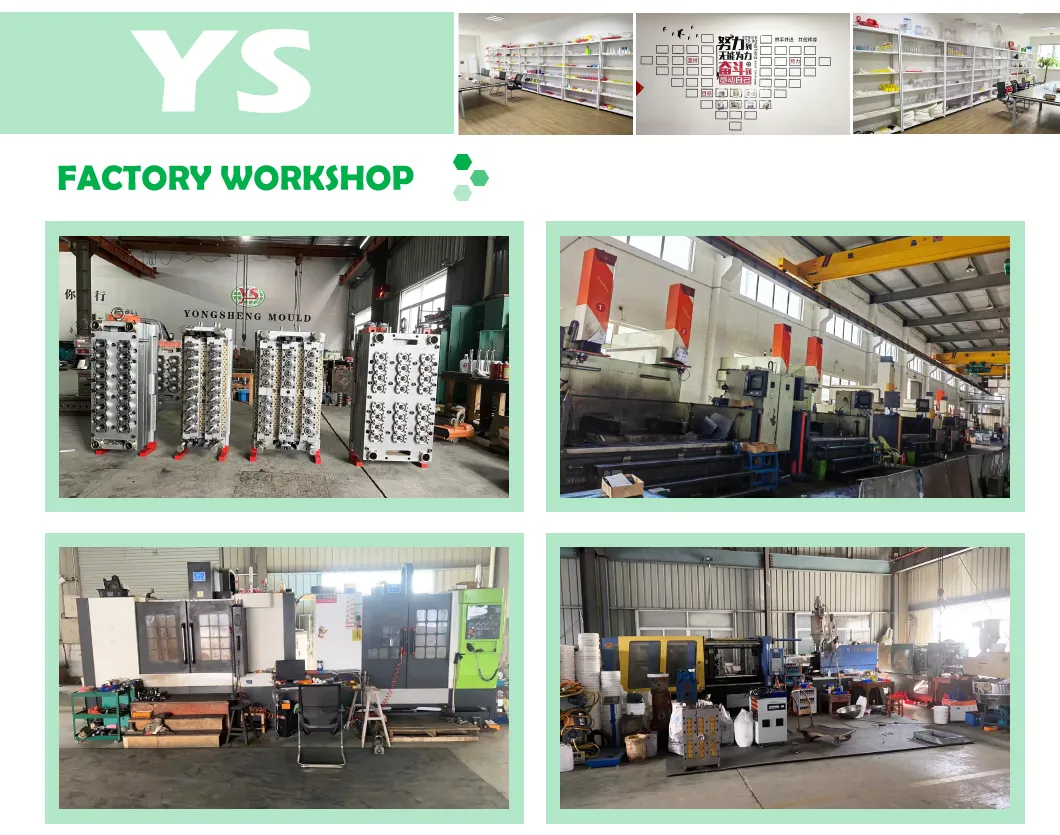

Machining Center 1 Machining Center 2
Product Range
Certificate 1 Certificate 2
Detailed Mould View Product Samples Production Line
Frequently Asked Questions
Could I have a sample to check the quality?
Yes. For ready-in-stock models, we can send samples immediately. For custom models, we provide sampling services according to your specific requirements.
How does your factory handle quality control?
Quality is our priority. All raw materials used are environmentally friendly, and our QC department is specifically responsible for checking quality at every process stage.
How do you maintain long-term business relationships?
We maintain excellent quality and competitive pricing to ensure our customers benefit. We respect every customer as a friend and conduct business with sincerity.
What are your payment terms?
We typically accept T/T, Paypal, or trade assurance options.
How is the shipping cost calculated?
Shipping costs depend on the total weight of your order and the chosen method (International Express, Air Freight, or Ocean Transportation).
What is the expected delivery time?
Delivery time varies based on order quantity and material requirements. We are highly supportive of meeting specific client promotion schedules.
