● Basic Specifications
Mould Cavity
Multi Cavity
Application
Car / Automotive
Design Software
UG / Auto CAD
Certification
TS16949, ISO9001, SGS
Standard
HASCO / LKM / DME
Production Capacity
500 Sets/Year
● Product Pictures and Description

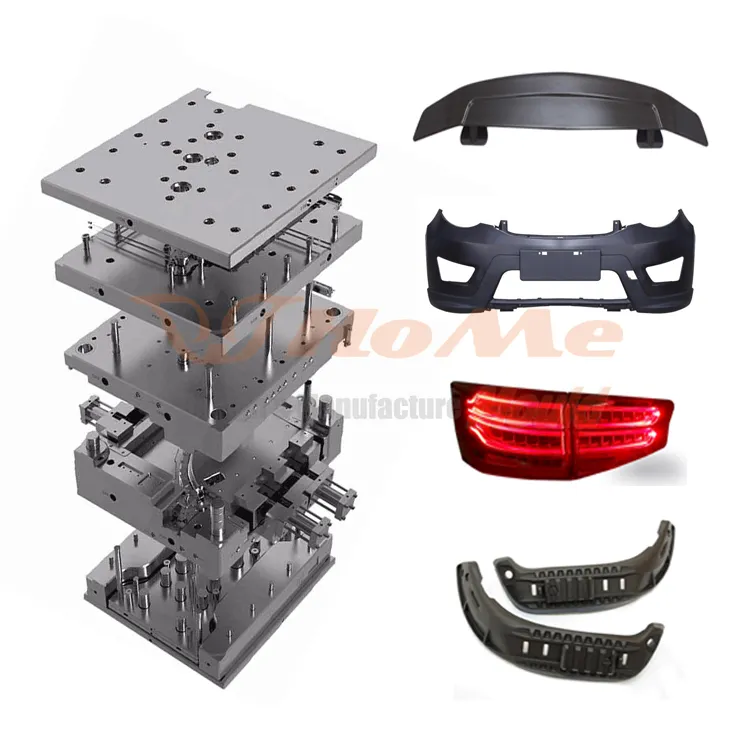

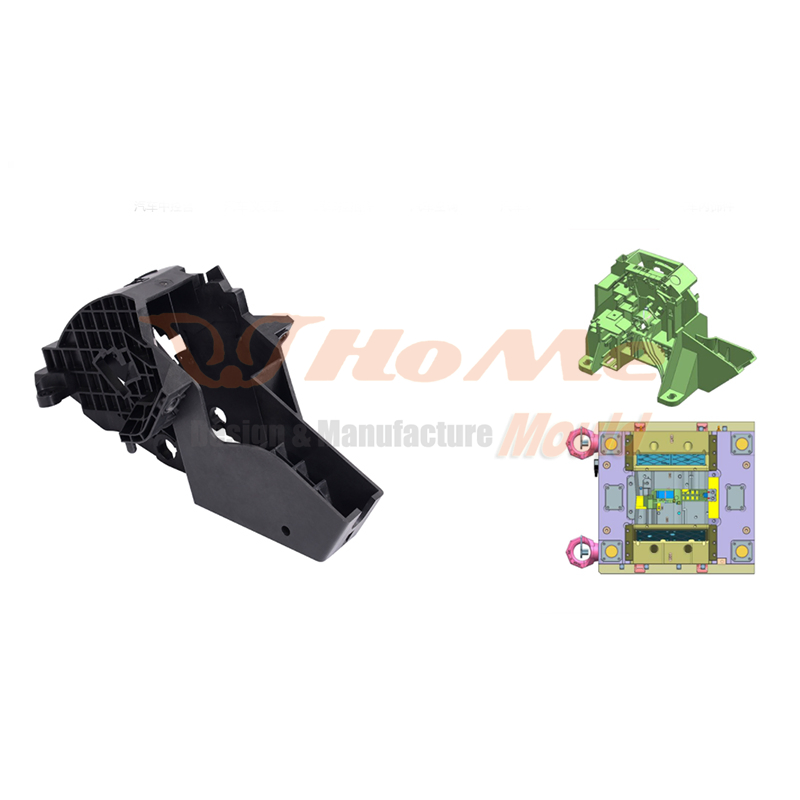

Professional Plastic Injection Mould Customization

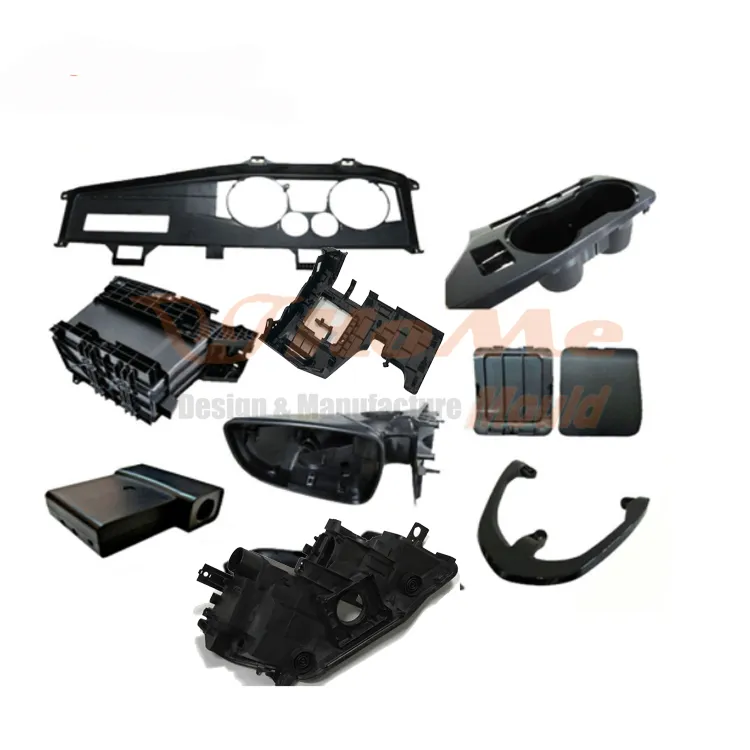

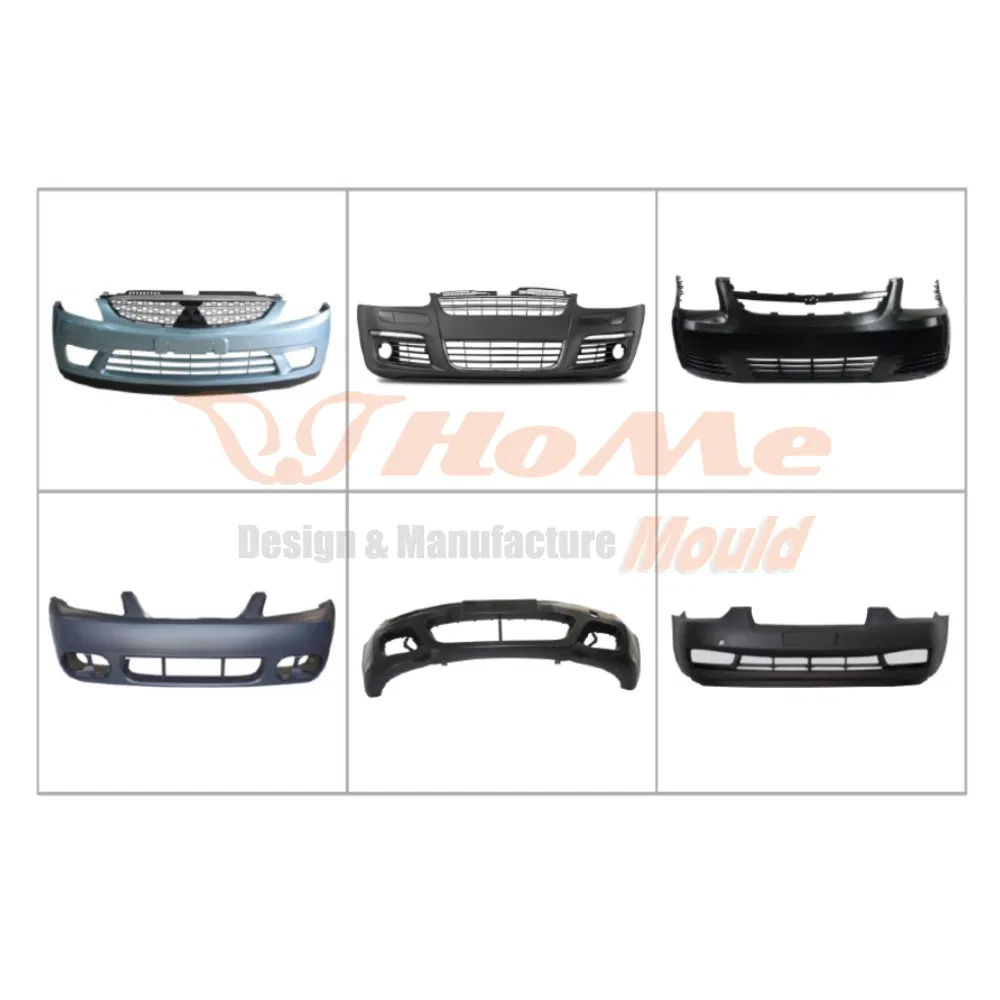

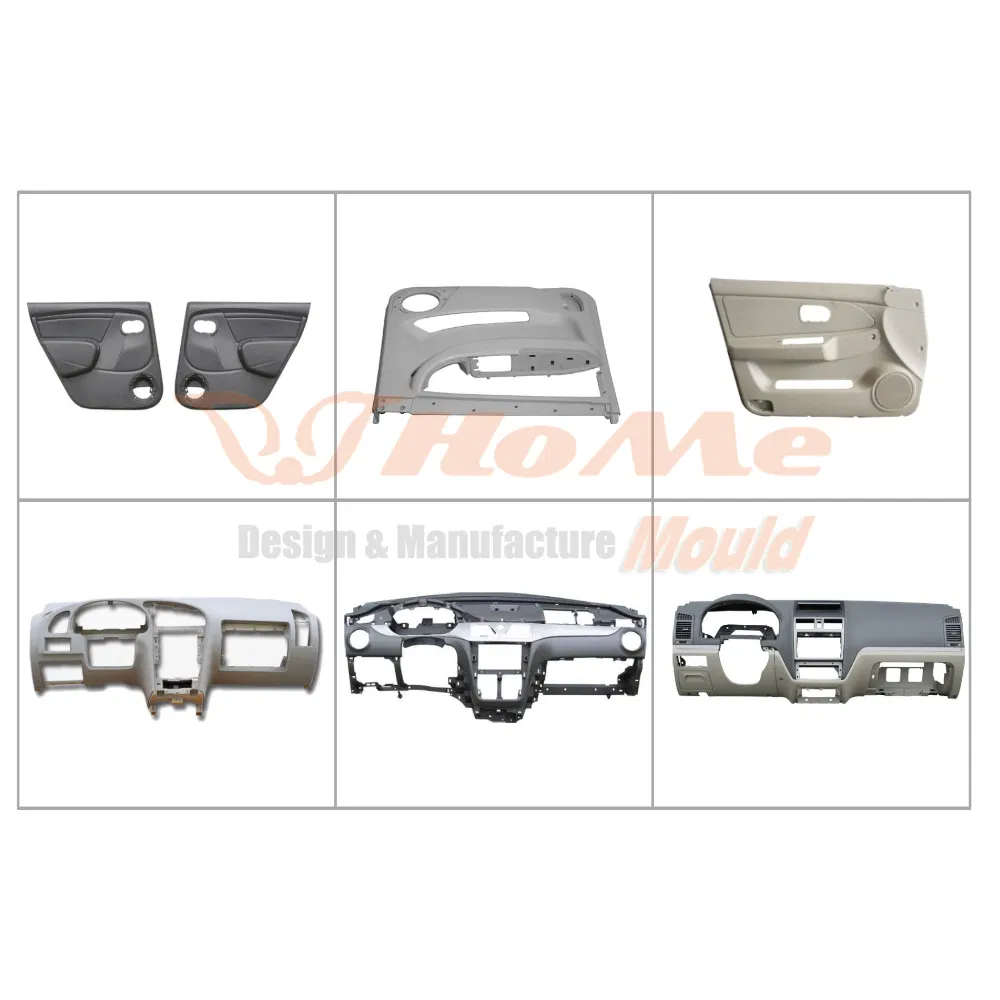

Extensive industry experience in manufacturing high-quality automotive interior and exterior decoration molds.
| Mould Name | Automobile Interior and Exterior Decoration Mold |
| Mold Material | P20, 2738, 718H, NAK80, 2316, S136, H13, etc. |
| Mold Base | Self-made, LKM, DME |
| Runner System | Cold runner and Hot runner (HASCO, YUDO, etc.) |
| Mold Life | 500,000 - 1,000,000 Shots (5-10 years with maintenance) |
| T1 Lead Time | 45-60 Days |
| Plastic Material | PP, PC, ABS, PET, PE, PVC, PMMA, PA6, PA66, POM, etc. |
| Precision | +/- 0.01mm |
| Surface Treatment | EDM, Texture, High Gloss Polishing |
| Cooling System | Water cooling or Beryllium bronze cooling |

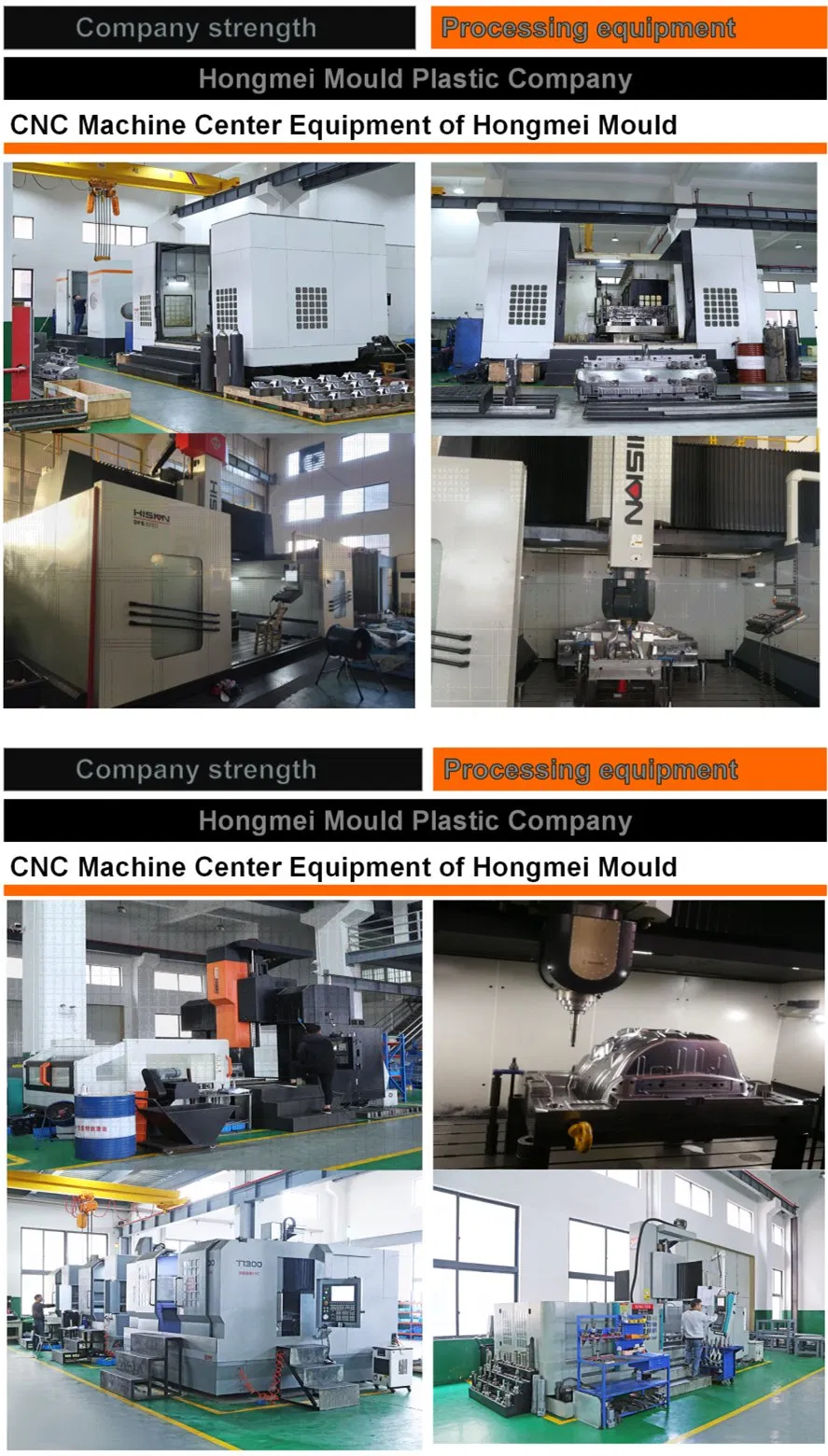

● Technical Capabilities & Equipment
✔ Five-axis high-speed milling
✔ Three-axis high-speed milling
✔ CNC engraving and milling
✔ Deep hole drilling machines
✔ Precision Electric sparks (EDM)
✔ Wire cutting equipment
✔ CMM Inspection Machine
✔ Large-scale milling centers
● Quality Control Process

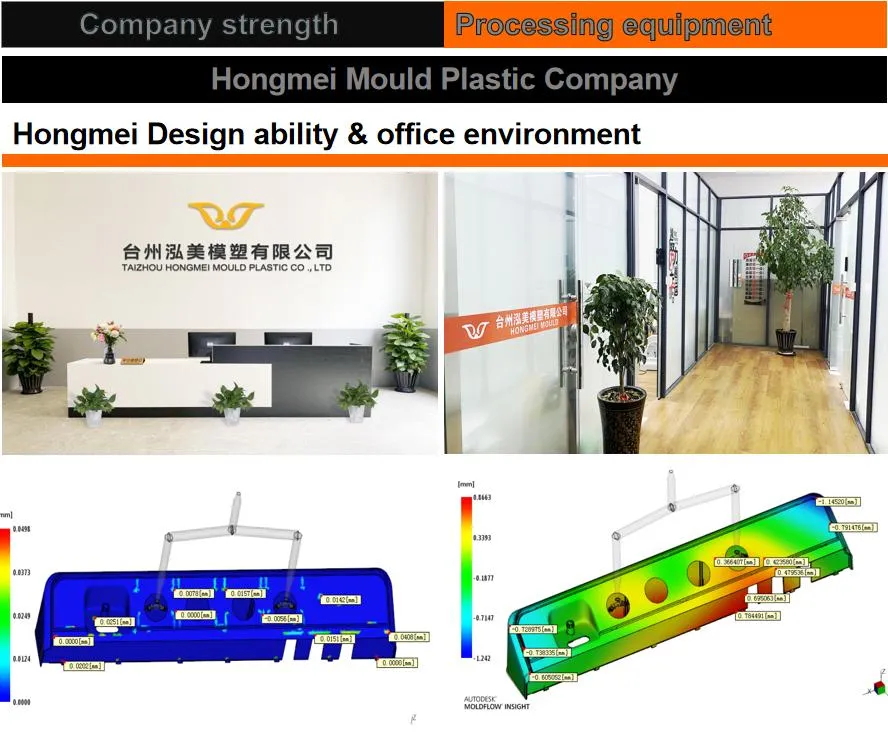

We provide a full range of processing technology, including mold flow analysis and simulation software to verify filling processes, dissolution wiring, and deformation. Our rigorous inspection covers:
▶ Steel purchasing inspection (hardness & flaw detection)

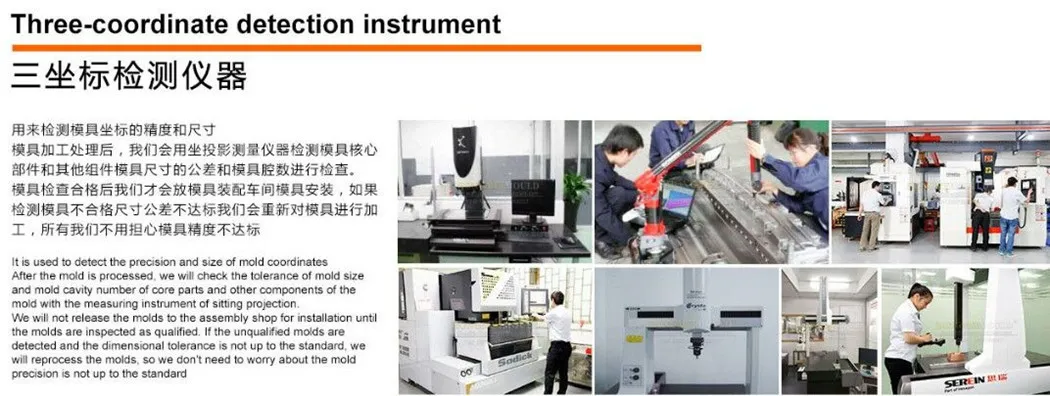

▶ CNC precision measurement (3D coordinate measures)
▶ Mold assembly & movement feasibility
▶ Cooling system & cycle testing
▶ Sample dimension and physical parameter analysis

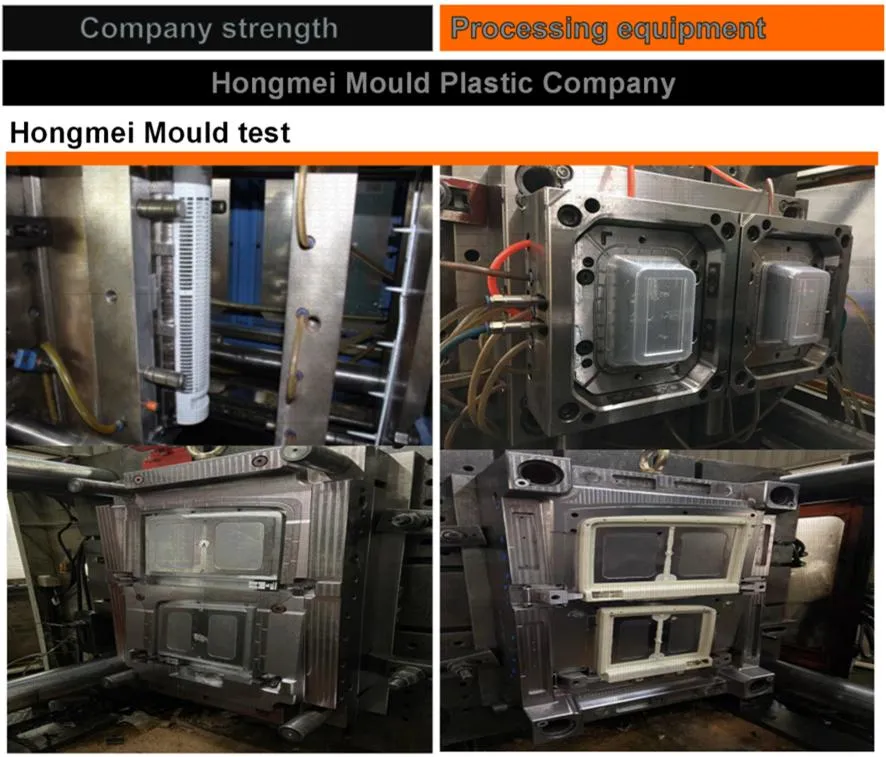

▶ High-pressure and long-term automatic running tests
● Mold Manufacturing & Delivery

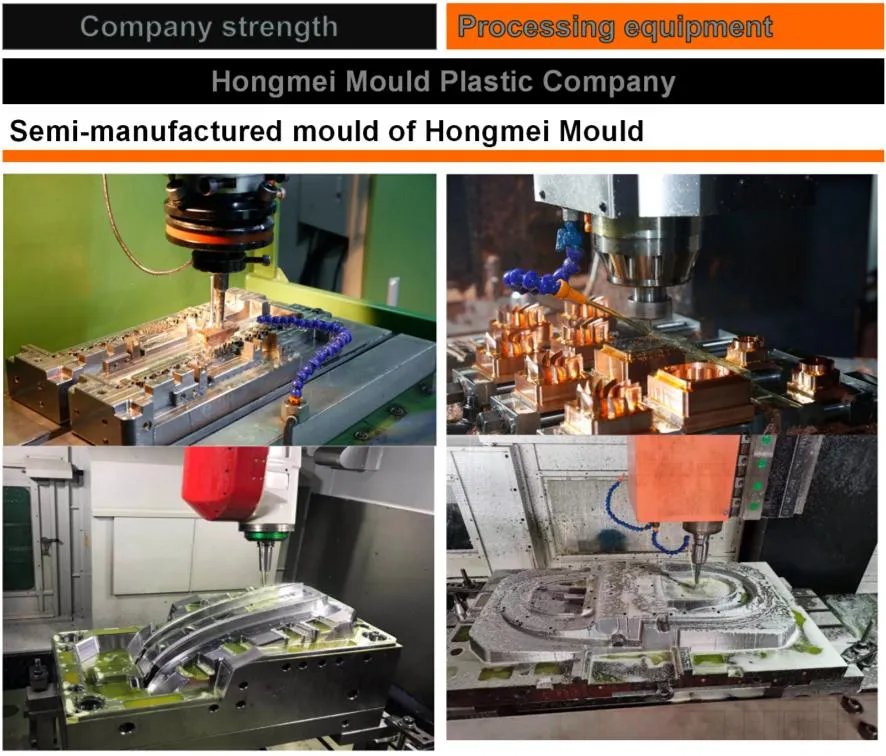

After the confirmation of the mold drawing, the manufacturing process includes steel preparation, CNC rough machining, deep hole drilling, EDM, finishing, and assembly. All moulds are manufactured with a tolerance of +/- 0.01mm.
● Packaging and Shipment
Prior to delivery, we perform a complete inspection to ensure the continuity of mold structure and parts standardization. The packaging steps include:
1. Cleaning cavity and core (no debris)
2. Spraying antirust paint (inside and outside)
3. Wrapping with protective plastic film
4. Securing in a reinforced wooden case
● Frequently Asked Questions
Q: What types of moulds can you manufacture?
A: We specialize in plastic injection moulds, including automotive parts, household appliances, thin-wall components, and industrial parts.
Q: How long is the typical lead time for a mould?
A: Most moulds are finished within 45 days. However, complex or very large-scale moulds may require more time.
Q: What are your standard payment terms?
A: Our standard terms are 50% prepayment in advance, with the remaining balance paid before shipment.
Q: Do you provide a warranty for the moulds?
A: Yes, we provide a 1-year warranty period. Wearing parts are provided for free within this period, excluding damage caused by improper operation.
Q: What is your annual production capacity?
A: We have the capacity to design and manufacture approximately 300 to 500 sets of injection moulds per year.
Q: Do you provide free design services?
A: Yes, we offer free design support including both part design optimization and comprehensive mould design.
