With rich manufacturing experience, we specialize in high-precision and customized injection mold development. Welcome to inquire at any time. We stand out as an excellent plastic injection mould supplier in China.
| Mould Parameter | Details & Specifications |
|---|---|

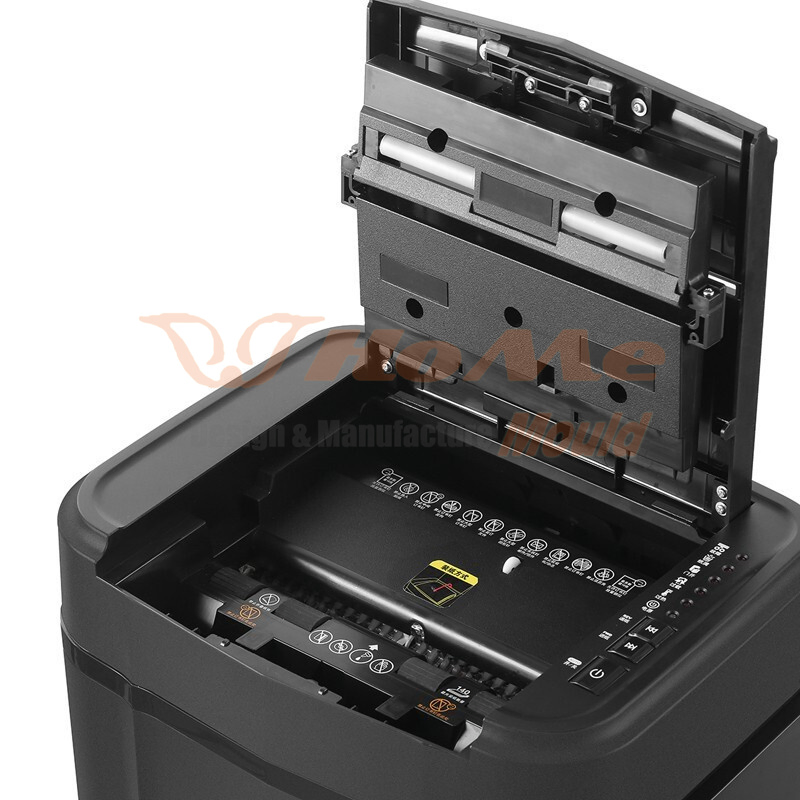

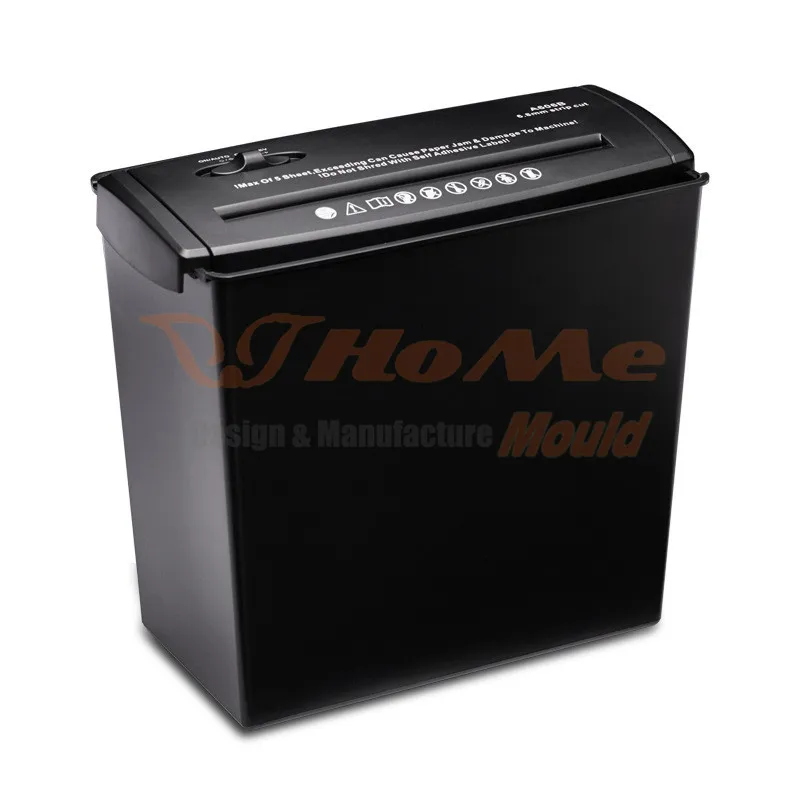

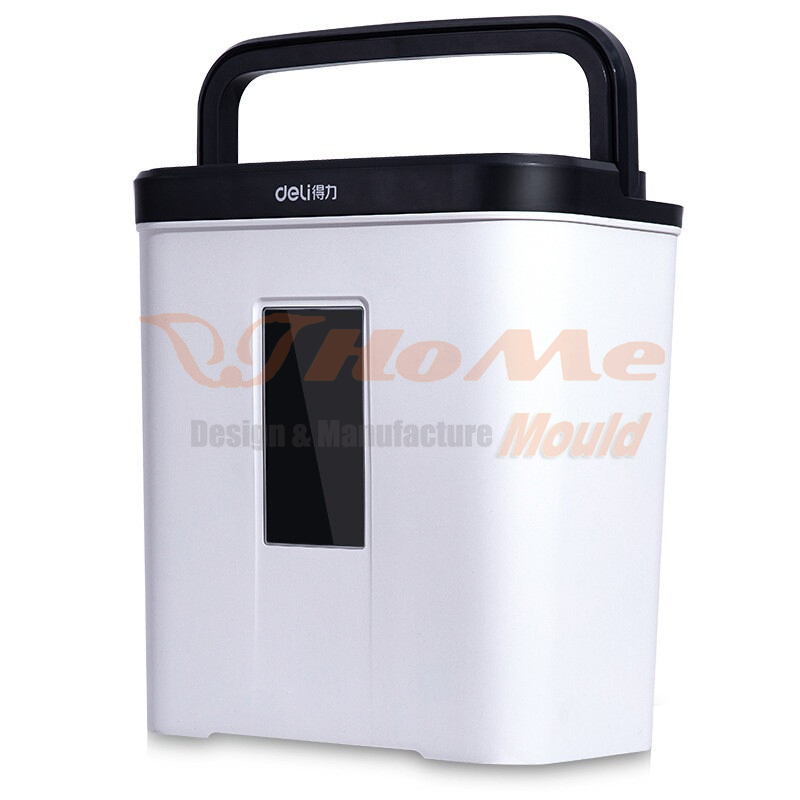

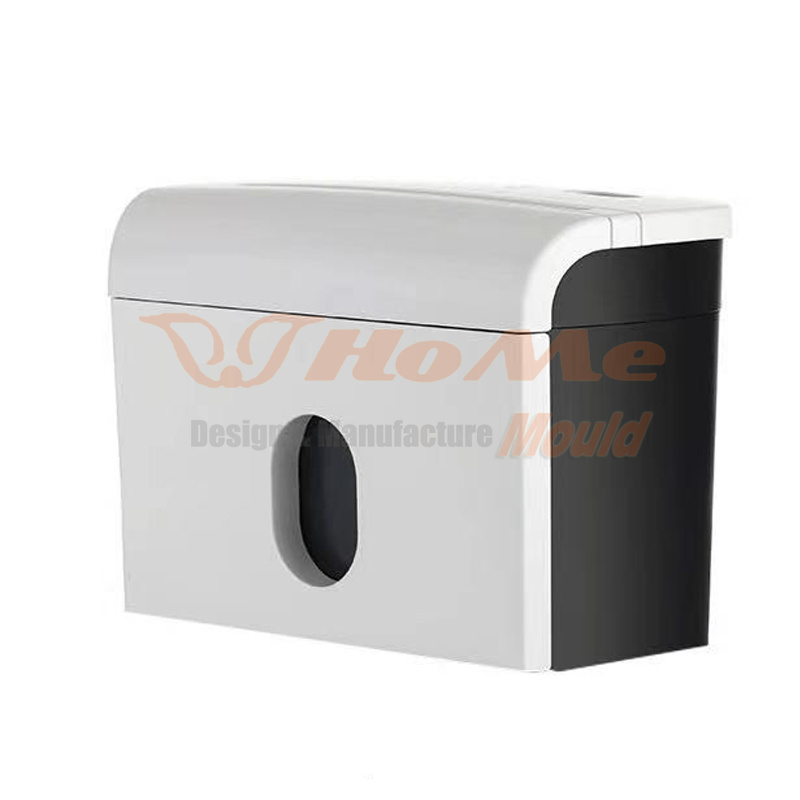

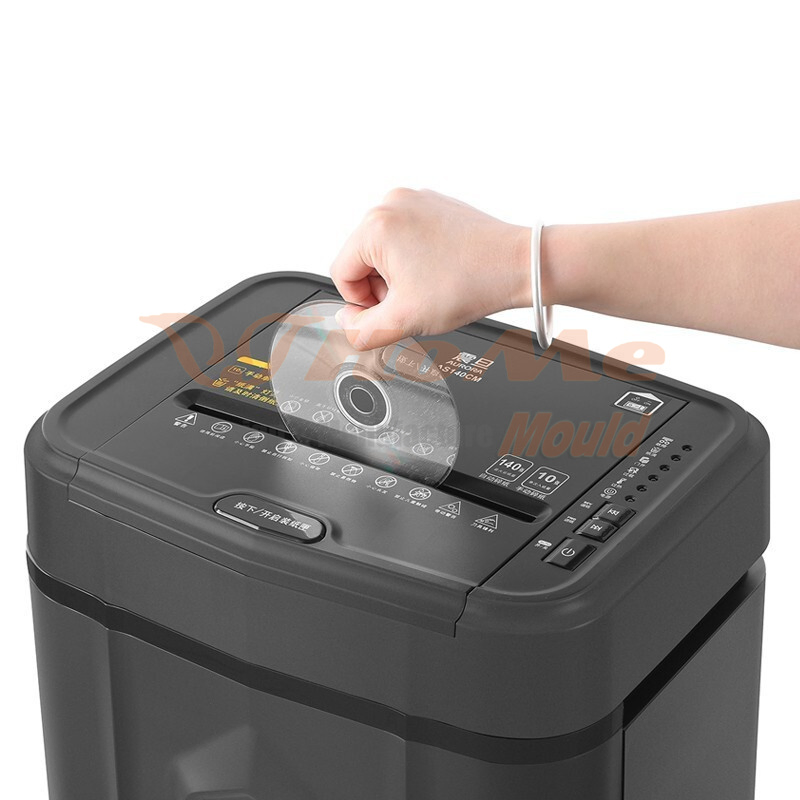

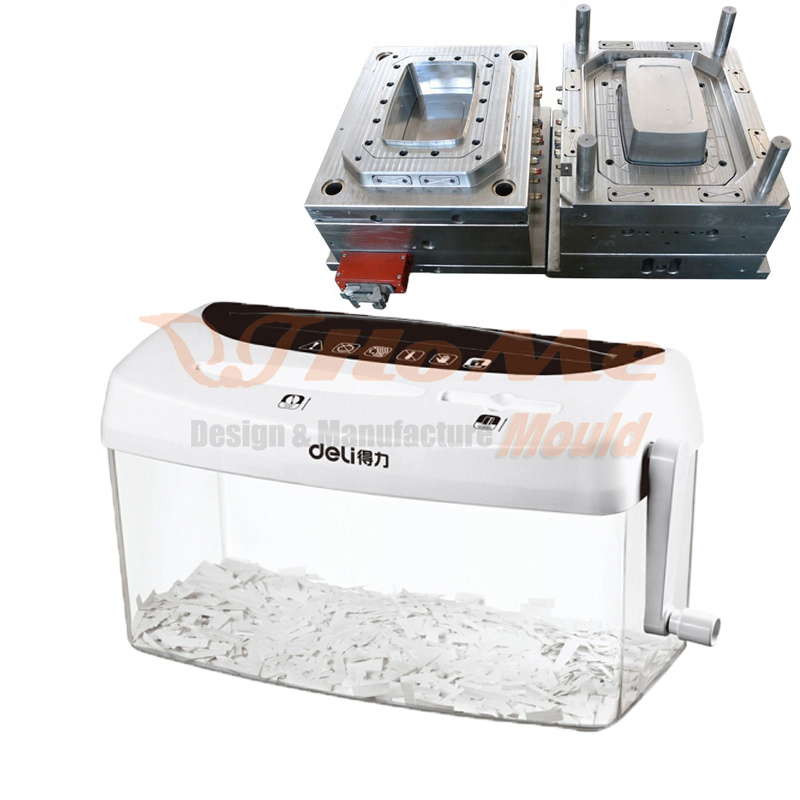

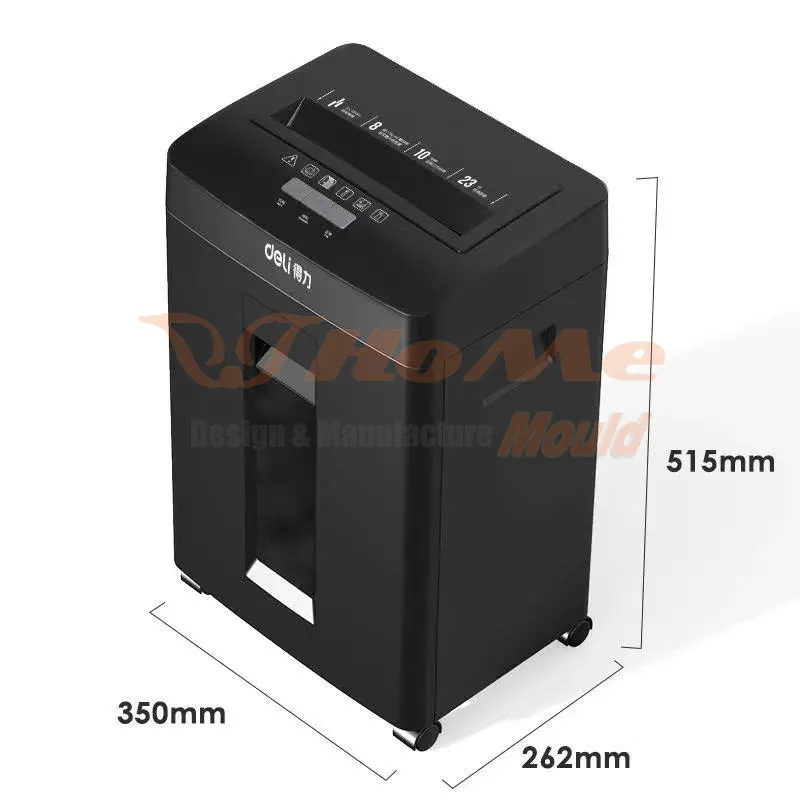

| Mould Name | Paper Shredder Mould |
| Mold Material | P20, 2738, 718H, NAK80, 2316, S136, H13, etc. |
| Mold Base | Self-made, LKM, DME |
| Runner Type | Cold runner and Hot runner |
| Hot Runner Brand | China Brand, HASCO, YUDO, etc. |
| Design Software | UG, Auto CAD, etc. |
| Mold Life | 500,000 to 5,000,000 Shots / 5-6 years (up to 10 years with good maintenance) |
| T1 Time | 45-60 days |

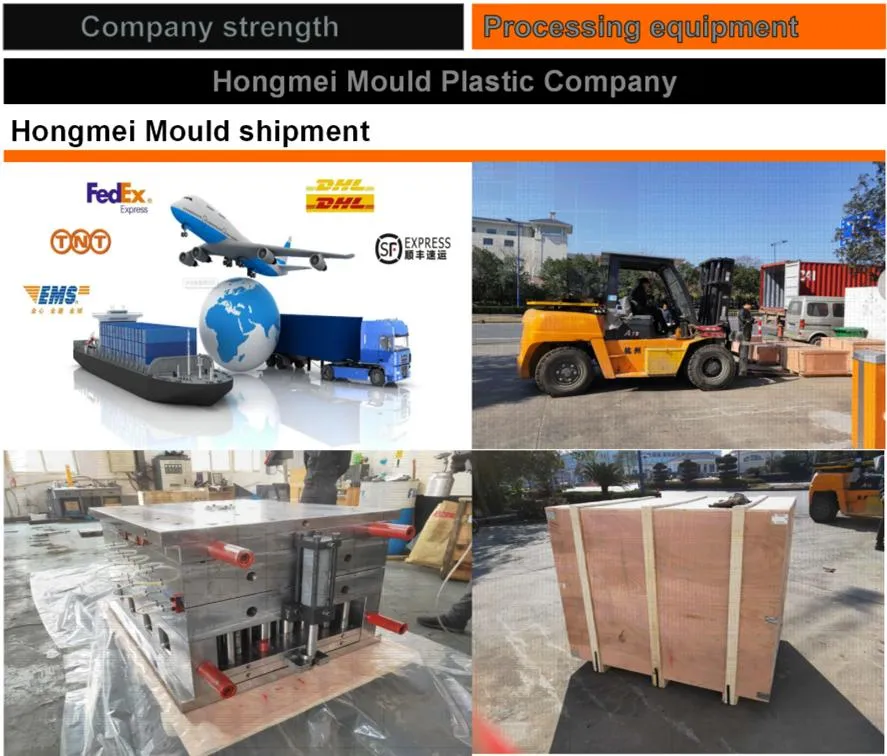

| Package | Wooden Case |
| Plastic Material | PP, PC, ABS, PET, PE, PVC, PMMA, TPR, PA6, PA66, ASA, POM, ABS+GF, ABS+PC, POM (Delrin) |
| Warranty Period | 1 year or 1 million shots (free replacement parts provided, excluding wrong operation issues) |
| Mould Precision | +/-0.01mm |
| Mould Cavity | Single Cavity, Multi-cavity |
| Gate Type | Pinpoint Gate, Edge Gate, Sub Gate, Film Gate, Valve Gate, Open Gate, etc. |
| Mould Surface Treatment | EDM, texture, high gloss polishing |
| Quality System | ISO9001, SGS, TS16949 |
| HS Code | 8480719090 |
| Origin | Made in China |
| Installation | Fixed |
| Cavity Options | Single/Multi |
| Specification | Depends on customer's requirements |
| Mold Cooling System | Water cooling or Beryllium bronze cooling, etc. |
| Mold Heat Treatment | Quenching, nitridation, tempering, etc. |

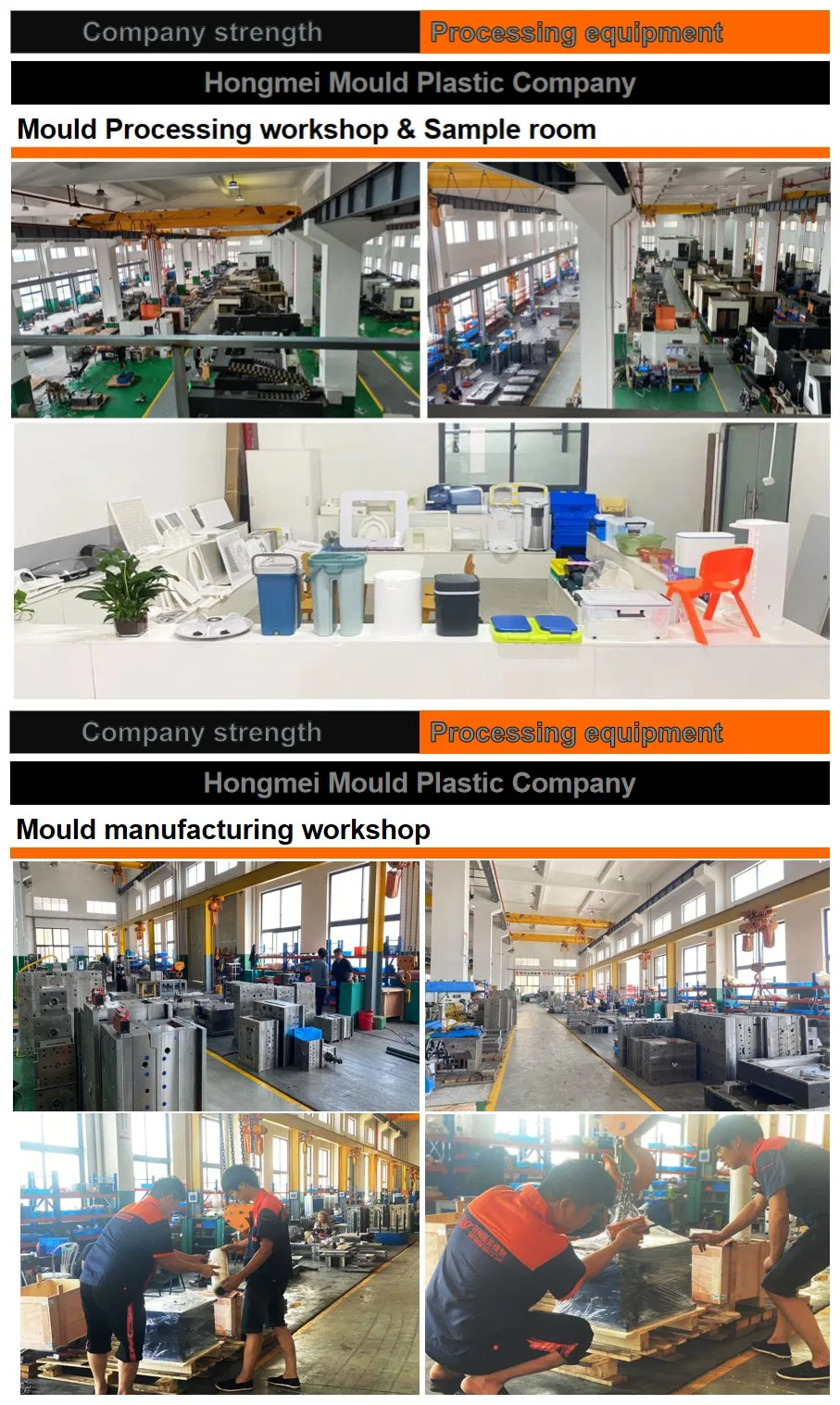

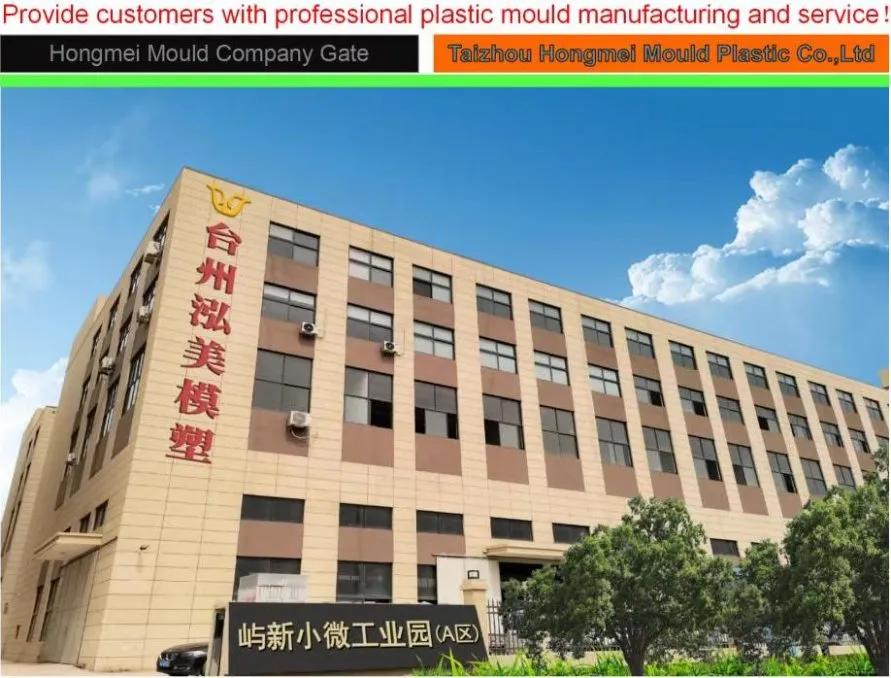

Established in 2014, we specialize in manufacturing various high-quality plastic injection moulds. Our state-of-the-art facility covers an area of 5,000 square meters and employees 86 highly skilled professionals. We specialize in developing all kinds of large-scale injection molds, particularly for automotive, home appliances, and daily necessities. We also provide comprehensive one-stop service for mold semi-finished products processing.
We leverage our knowledge and experience to collaborate closely with customers, presenting technology-forward ideas and participating directly in product design. By providing product structure design feedback, mold manufacturability reports, and 2D/3D layouts, we help customers mitigate development risks at an early stage.

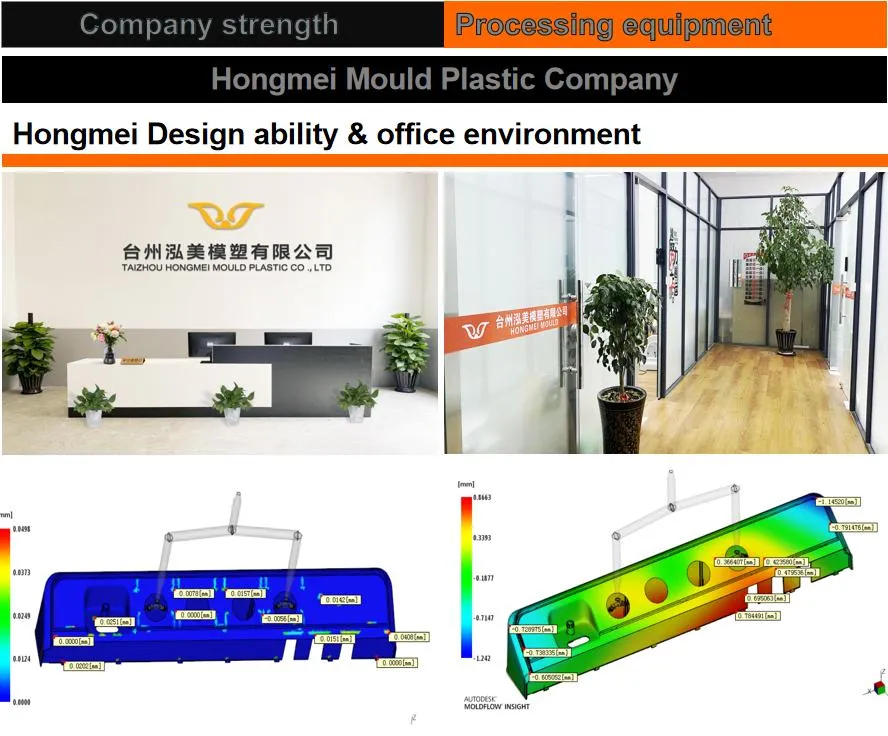

During every stage of development, our project personnel and design teams strictly follow rigorous project management methodologies. We simulate filling, dissolution wiring, and deformation details using advanced flow analysis software to ensure project success at the initial T1 trial.

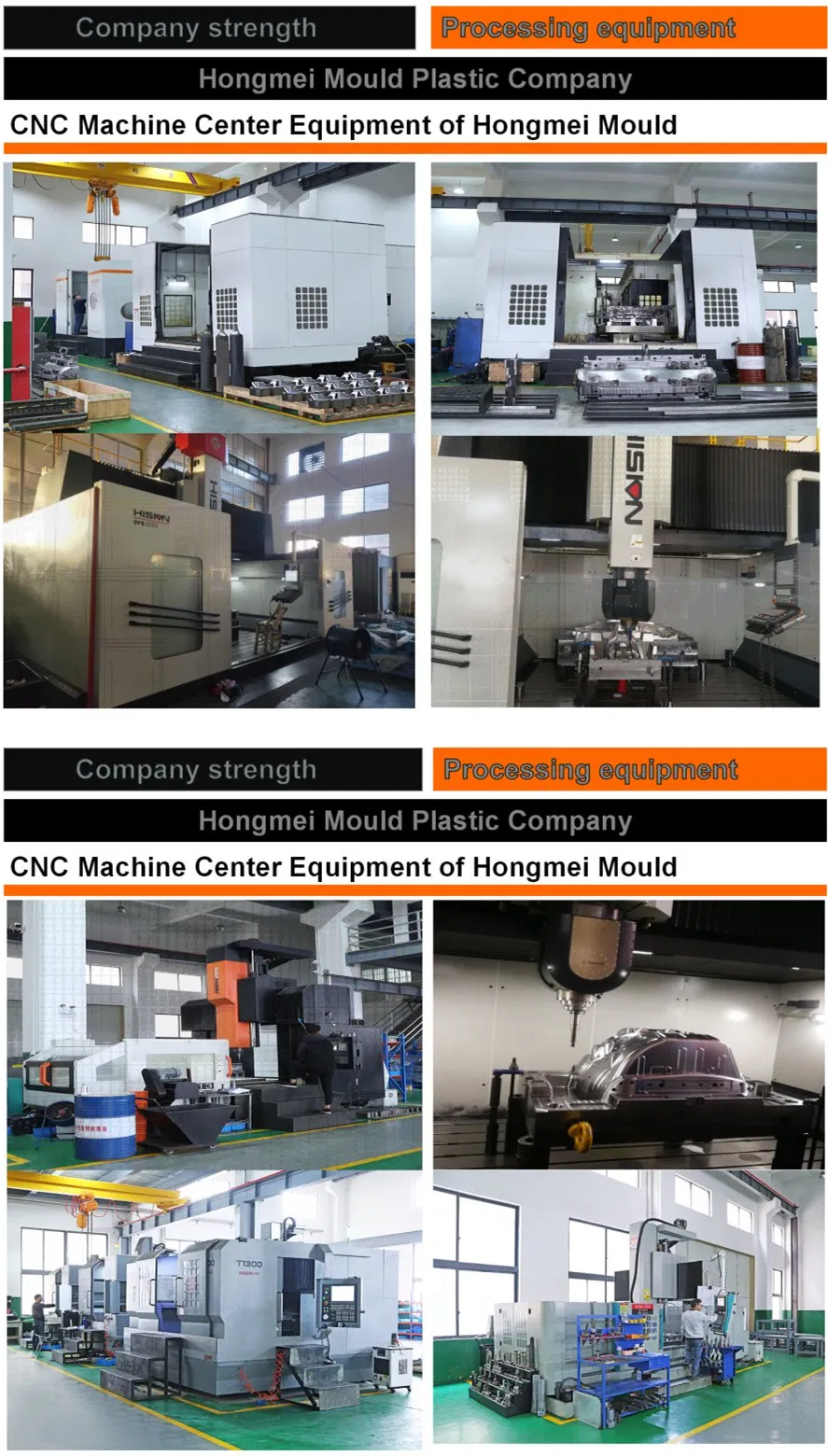

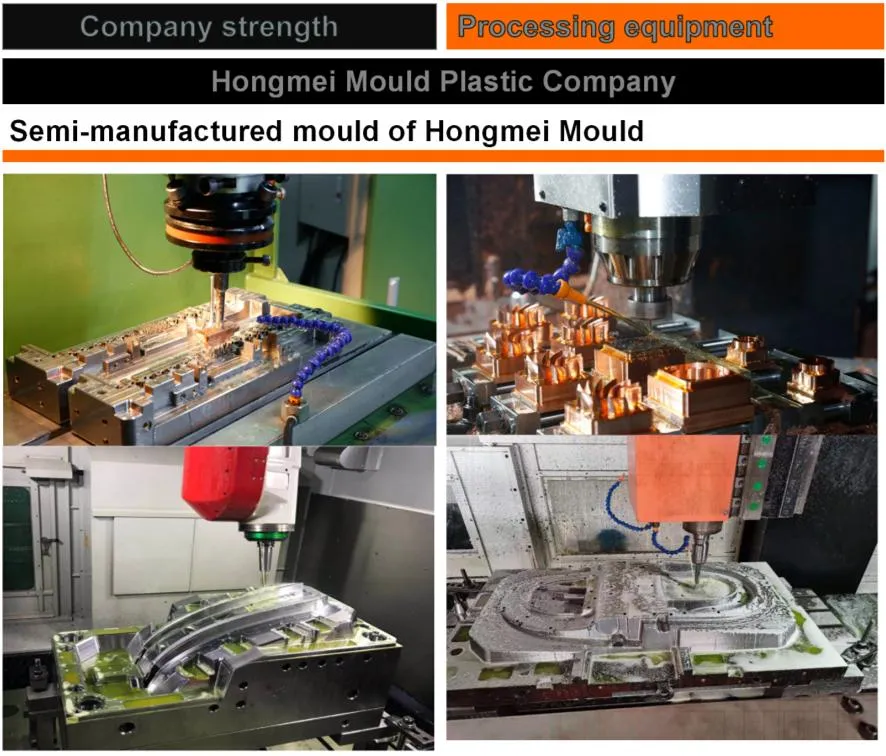

Our high-speed machining centers are equipped with automatic tool changers, laser calibration, and workpiece detection capabilities. Programming is fully optimized for 2D, 3D, and 5-axis operations, ensuring exceptional structural integrity.
A superior mould represents more than just raw CNC processing and final assembly. We pay meticulous attention to the details: mold flow analysis, dimensions check, tooling precision, water channel functionality, and standard of polish.
Every design undergo strict analysis regarding molding process feasibility, structure functionality, and component matching. Finding design issues early avoids costly scrap and repair work downstream.
We implement strict inspection workflows for all incoming components, validating size precision, steel hardness, standard certifications, and material flaws.
Following the confirmation of custom designs, the production steps include steel preparation, CNC rough machining, deep hole drilling, EDM, high-speed milling, final finishing, and complete assembly. Working limits are maintained at a tight tolerance of +/-0.01mm, guaranteeing flash-free finishes.

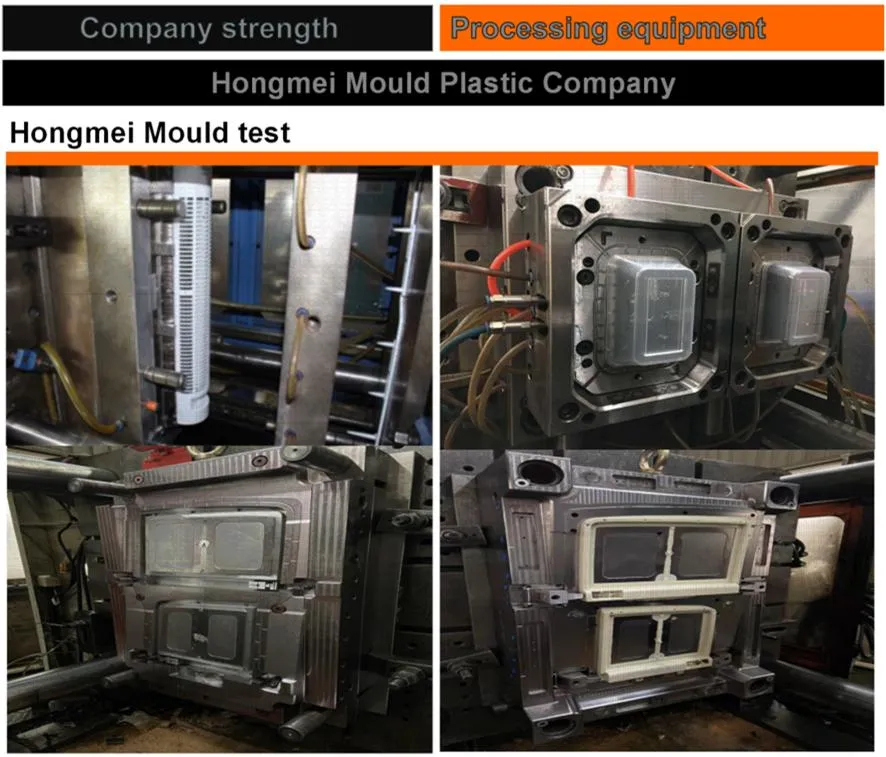

We execute multi-stage test procedures, consisting of empty running, high-pressure holding, high-speed injection, and durability trials. Final samples and trial videos are submitted to clients for absolute verification and approval.

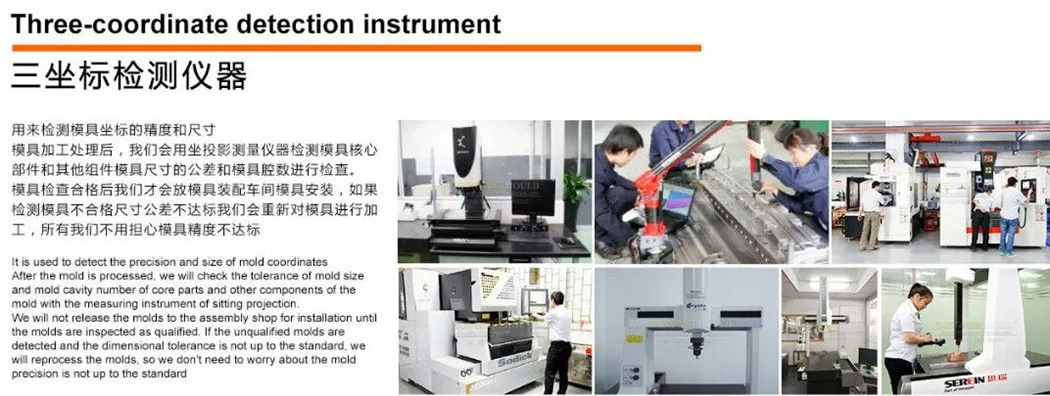

Our core standard centers entirely on responsibility. From inquiry analysis to mold design layouts, our engineers focus on maximizing tool life, easing the machining process, and protecting the delivery schedule. Precise coordinate measures verify physical dimensions at every step, avoiding cumulative downstream errors.
Free Design Services: We provide full support including detailed component layout and mold assembly designs.
24-Hour Online Service: Immediate technical responses and continuous project tracking are provided to prevent any delays.
