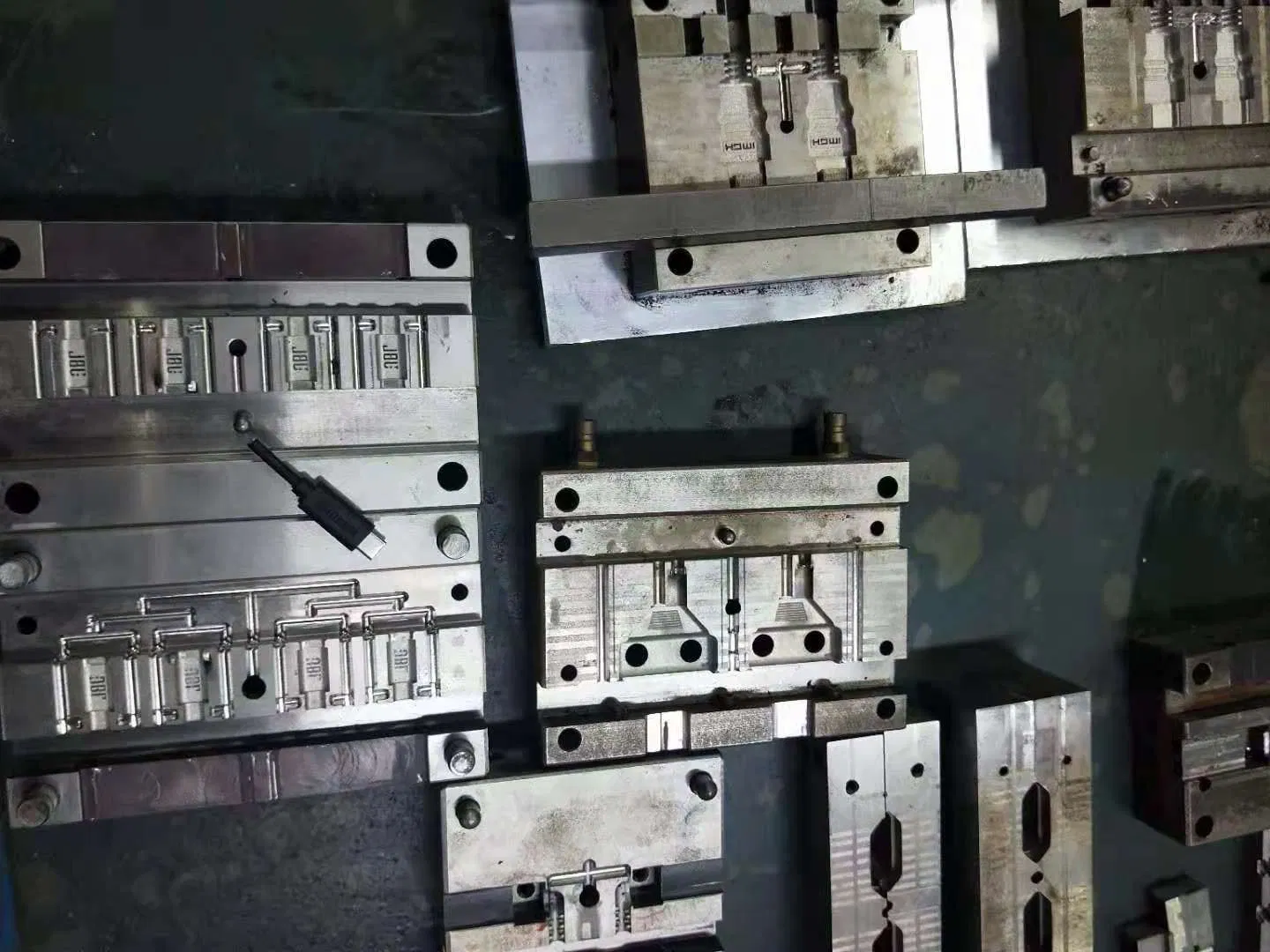

Mold Designer PA66/PBT+30GF Auto Terminal Connector Electric Auto Wireharness Housing Connector Auto Parts Plastic Molding

Send Inquiry

Product Description

Plastic Injection Mold Technical Specifications
Product Material	ABS, PA, PA66+30GF, PBT, PC, POM, PP, PE, MA, PVC, TPE, TPU etc
Material of Steel	738, 718, NAK80, S136, P20 etc
Surface Requirement	Smooth, Polishing, Painting, SandBlasting, Electroplate, Silk-screen, Laser Etching, Anodizing, Brushing
Tolerance Request	Up to (±0.005mm)
Mould Life	500,000 - 1,200,000 shots
Multi Injection	Single / Double / Multi color
Design Software	Pro/E, UG, Catia, Woodwork, Moldflow, AutoCad
Injection System	Hot / Cold Runner
Inserts (Cavity/Core)	H13, 1.2344, 1.2738, 1.2083, 1.2311, NAK80 or custom required
Mold Cavity	11, 1+1, 12, 1+1+1, etc
Gate Type	Side gate, Sub gate, Pin point gate, Edge gate etc
Ejector System	Stripper plate, Lifter, Push bar, Ejection pin etc
Steel Standard	FINKL, Assab, DAIDO, LKM, Buderus

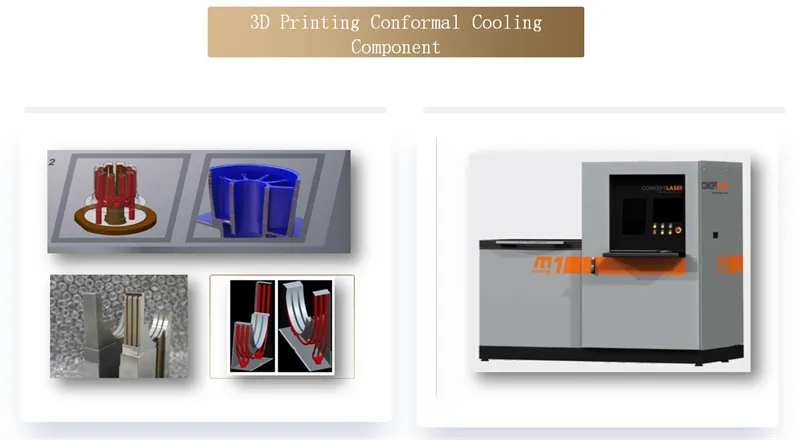

Cooling	Baffles / Spring Piple / 3D printing water line
Standard Parts	DME / HASCO / PROGRESSIVE / MISUMI / Parker / HP / Merkle
Design Capability	DFM, Mould flow analysis, Product optimization, Full 2D & 3D design, Reverse engineering
Documents Provided	Full drawing, Weekly Processing Report, Steel Dimension report, Sample Dimension Report
Certificate	ISO9001, ISO14001
MOQ	1 Set
Lead Time	6-10 weeks or based on requirements
Payment Terms	40% Deposit, 30% Before Inspection, 30% Before Shipment
Port of Loading	SHUNDE / GUANGZHOU / SHENZHEN

SGS Group Verified Details

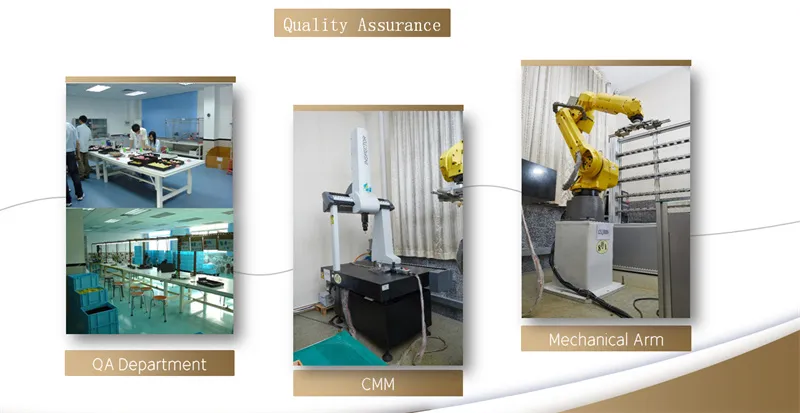

Professional Staff & Facilities

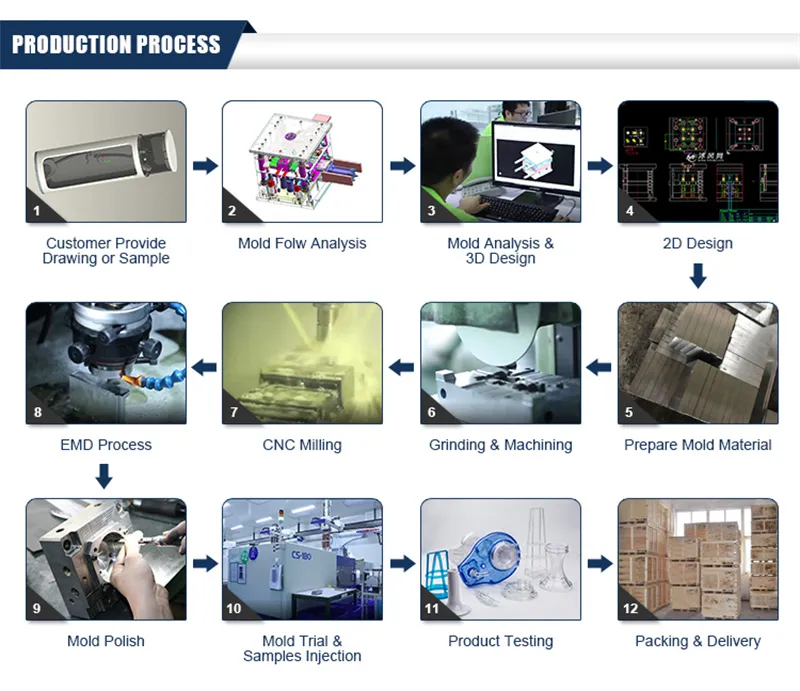

Mould Trade Process

Order Referential Guide (Fast Quotation)

1
Select the grade (A to D) to match your requirement.
2
Inform us of: Plastic type, Product QTY, Part's Drawing, and Target Price. (Response within 24 hours).
3
No drawing? Send Plastic type, QTY, Sample or Picture with a ruler, and Target Price. (Response within 48 hours).

Frequently Asked Questions

Are you a factory or trading company?

We are a professional manufacturer of injection molds with over 30 years of experience.

Do you provide assembly services?

Yes, our facility includes a dedicated assembly room to provide complete product solutions.

Can you help evaluate the feasibility of a new product idea?

Absolutely. We work with customers to evaluate technical feasibility, materials, and tooling costs for new designs.

What CAD file formats do you accept for drawings?

We can use DWG, DXF, IGES, Solidworks, and Rhino files to generate quotes and mold tools.

Can I test my product before committing to mold manufacture?

Yes, we can use CAD drawings to create physical models and prototypes for functional evaluation.

What is the standard lead time for mold production?

The standard lead time is approximately 6-10 weeks, depending on the complexity and specific order requirements.
